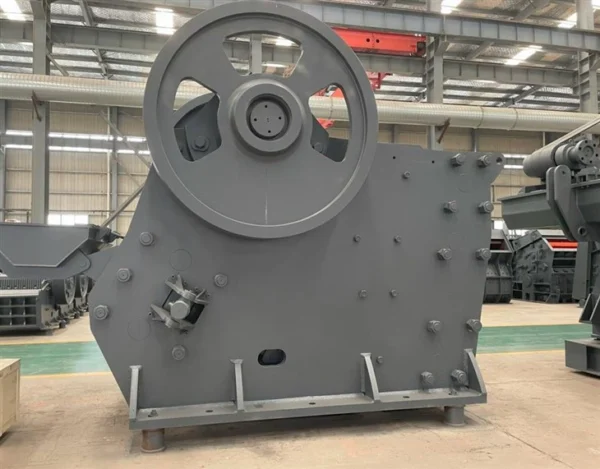

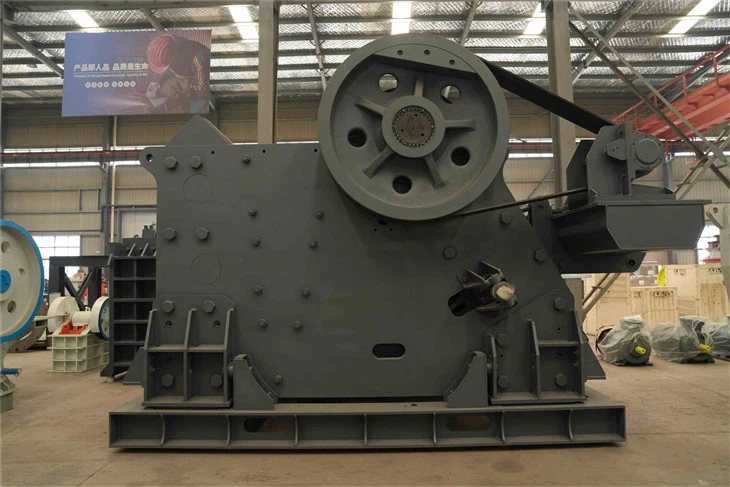

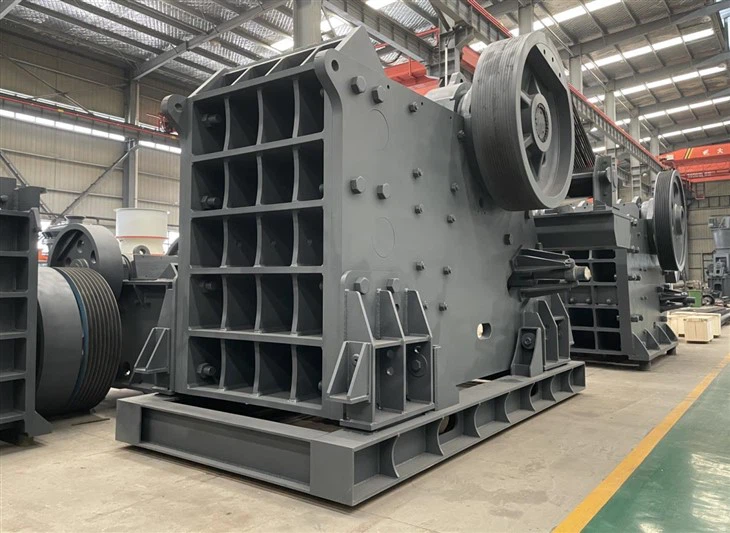

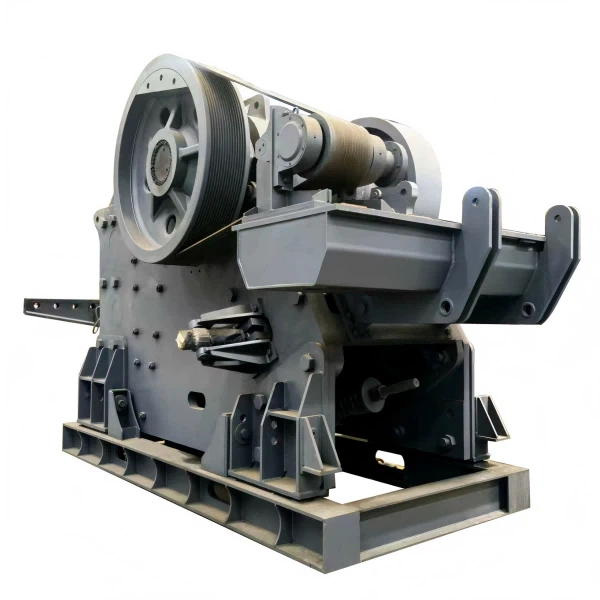

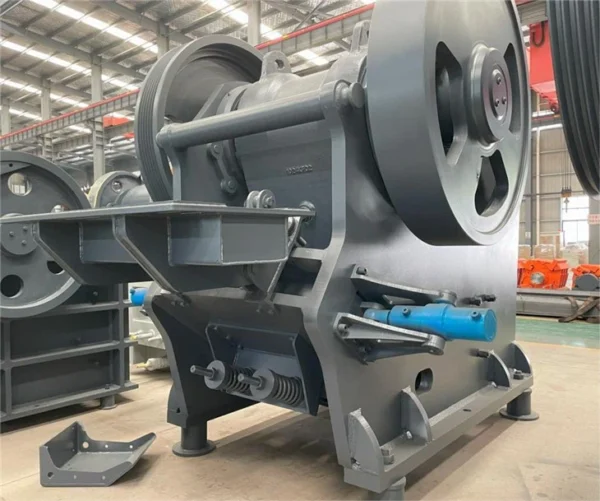

C Series Jaw Rock Crusher Machine
C series superior jaw crusher is our core coarse crushing equipment which is carefully designed and manufactured. It is famous for its solid structure, efficient crushing capacity and excellent reliability.
Introduction
C series superior jaw crusher is our core coarse crushing equipment which is carefully designed and manufactured. It is famous for its solid structure, efficient crushing capacity and excellent reliability.
C series industrial jaw crusher mainly used in mining, sand and gravel aggregate production and other fields. It is the first process equipment for crushing hard rocks (such as granite, basalt, quartz stone, etc.) and various ores.
Working Principle
C series best jaw crusher is powered by an electric motor. The motor rotor drives the eccentric shaft to reciprocate through the V-belt and groove wheel transmission, so that the movable jaw reciprocates along the specified trajectory.
Large pieces of material will enter the crushing chamber from the upper feed port. In the crushing chamber composed of the fixed jaw, movable jaw and side plates, the material is crushed into small stones and finally discharged through the discharge port at the bottom.
Lean Manufacturing And Quality Commitment
In our factory, every C series jaw stone crusher is produced under our strict quality management system.

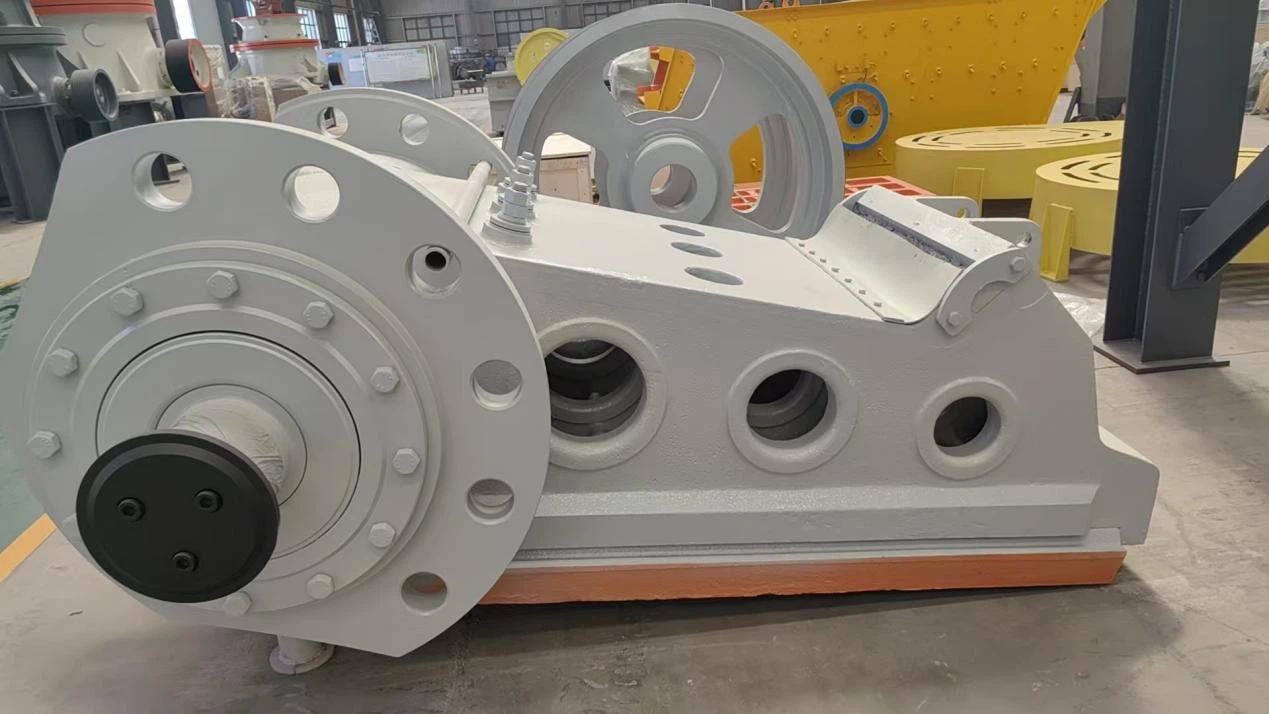

(1) 100% of the key components of the C series jaw crusher machine, such as the frame, movable jaw body, main shaft, bearing seat, etc., are subjected to non-destructive testing (UT/MT).
(2) Large structural parts are processed by precision CNC machining centers to ensure assembly accuracy and interchangeability.
(3) We will conduct a test run before the whole machine leaves the factory. During the test run, we will measure and record the temperature of the bearings to ensure that the temperature rise meets the standards and that the machine runs smoothly without abnormal vibration or noise.
(4) When shipping, we will put comprehensive technical documents, such as instruction manuals, electrical drawings, accessories catalogs, etc., in the electrical control cabinet or wooden box.
