Ceramic Ball Mill for Non-metalic Mine





Working Principle

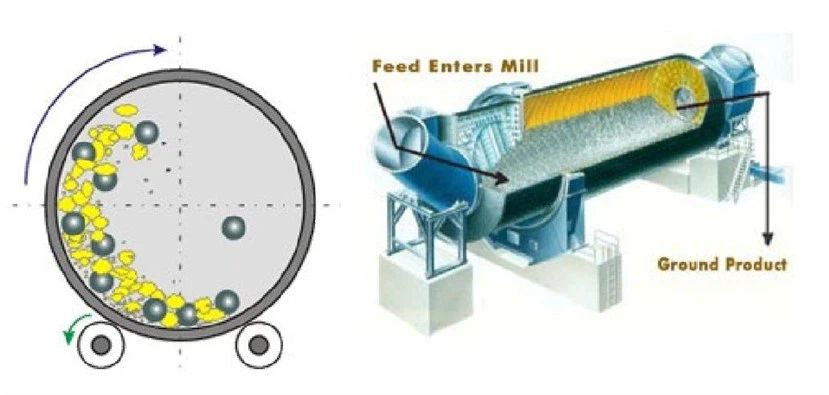

The main body of the ball mill is a revolving cylinder, both ends are equipped with end covers with hollow shafts, the hollow shafts are supported by the main bearings, and the whole mill rotates under the drive of the transmission device. Due to the action of inertial centrifugal force, the grinding body is attached to the lining surface of the inner wall of the mill and rotates together with it. After being brought to a certain height, it falls freely by gravity. The grinding body has a cyclic movement of rising and falling in the rotating mill, resulting in sliding and rolling, resulting in the grinding action between the grinding body, the lining plate and the material to be ground to make the material fine. In order to protect the cylinder from the direct impact of the ball and the sliding friction of the steel ball and the material, the inner wall of the cylinder is also equipped with a lining plate.

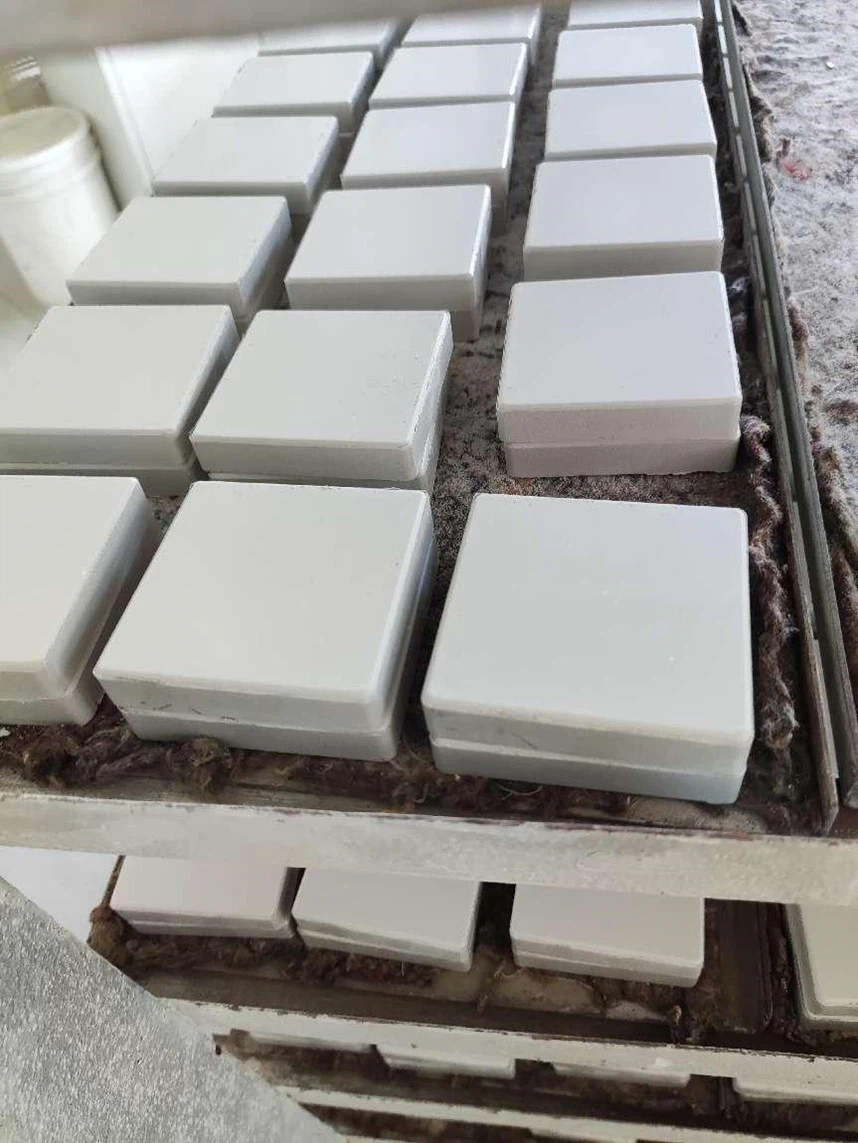

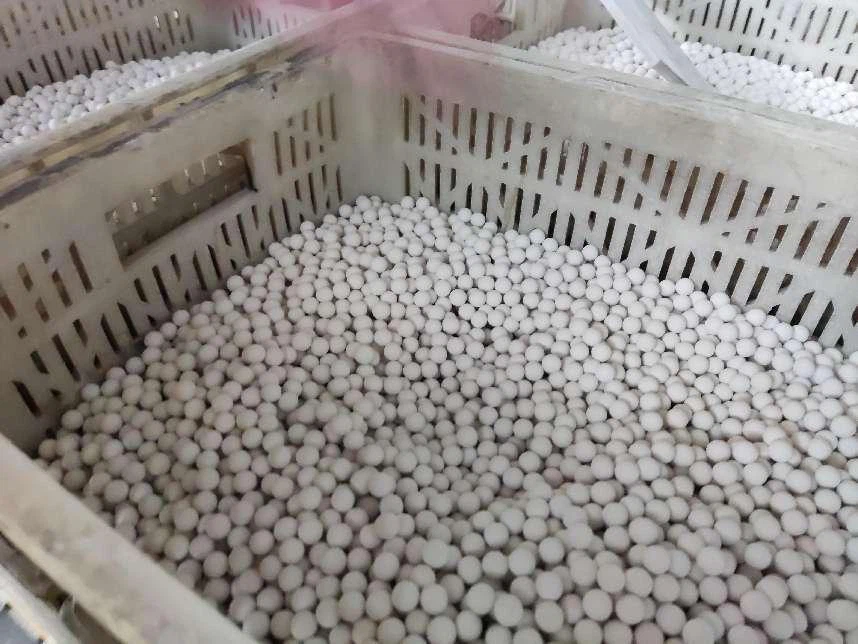

Ceramic Balls and Ceramic Liner of Ball Mill for Non-metal Mine



Technical Parameters
