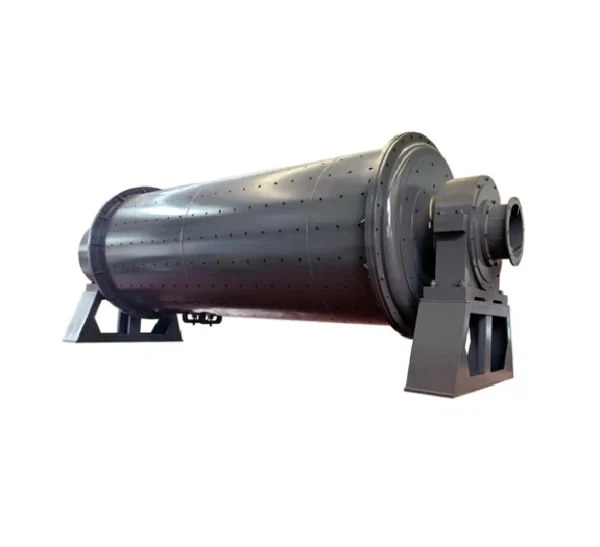

Bearing Ball Mill Machine
Bearing ball mill machine is a grinding equipment that uses self-aligning rolling bearings to replace the traditional bearing structure.
Introduction

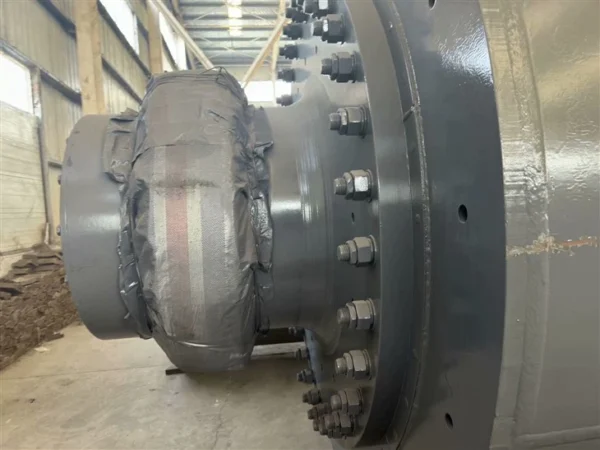

Bearing ball mill machine is a grinding equipment that uses self-aligning rolling bearings to replace the traditional bearing structure. The hollow shaft and the bearing are firmly connected through the positioning ring and the positioning pin.
Its core innovation is to replace sliding friction with rolling friction, which fundamentally solves the technical problem of “burning bearings” in traditional ball mill grinder. The equipment consists of a cylinder, a grinding head, a feeding and discharging device and a transmission system. The four-way sealing structure and dry oil lubrication system are specially designed to greatly improve the reliability of equipment operation.
Ball Mill Advantages
Significant energy saving and consumption reduction: small and medium-sized ball mill apparatus save 15-30% of electricity, large equipment saves 10-15% of electricity, and φ3.2×13m cement mill can save more than 500,000 degrees of electricity per year
High operating reliability: completely eliminate the accident of burning bearings, increase the ball mill efficiency by 5-15%, and increase the annual production benefit by 100,000-150,000 yuan
Low maintenance cost: cancel the thin oil station, save 15,000-20,000 yuan of maintenance fee per year, and reduce ball mill lubrication system lubrication cost by 80%
Extended service life: the design life of the bearing is 10-15 years, which is 2-3 times that of the bearing
Convenient installation and modification: retain the original machine installation size, and the modification cycle only takes 3-5 days
Environmentally friendly: no oil leakage, ball mill noise reduction of 5-8dB(A), and significantly improved working environment
Ball Mill Application
Cement industry: raw material mill, cement mill, slag micro powder production line, especially suitable for supporting new dry production lines above 2500t/d
Metal beneficiation: pre-grinding of non-ferrous metals such as iron ore, copper ore, gold ore, etc., increasing the processing capacity by 10-15%
Fine chemicals: processing of high-end powders such as pigments, battery materials, electronic ceramics, etc., with more uniform product particle size
Electric power environmental protection: resource processing of solid waste such as fly ash and desulfurized gypsum, reducing comprehensive power consumption by 20%
Ball Mill Construction

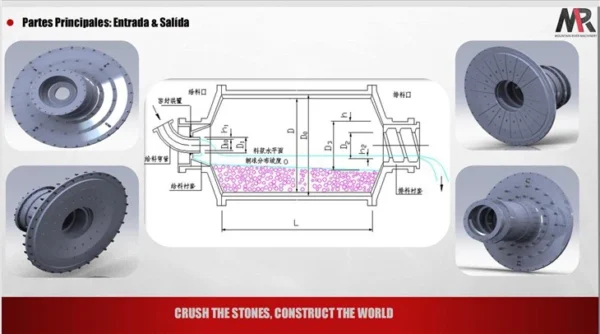

Ball mill equipment consists of the feeding part, discharging part, rotating part, transmission part and other core components, among which the transmission part includes high-efficiency reducer, precision gear, motor and intelligent electronic control system.
The whole machine adopts optimized design, compact structure, stable and reliable operation, ensuring efficient and continuous operation. The components are precisely matched, low noise, easy to maintain, can meet the needs of different working conditions, and significantly improve production efficiency.
