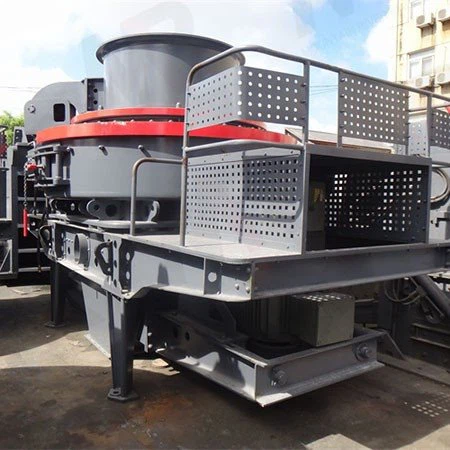

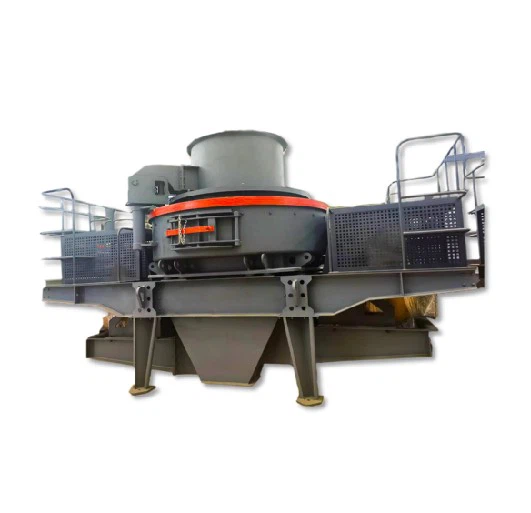

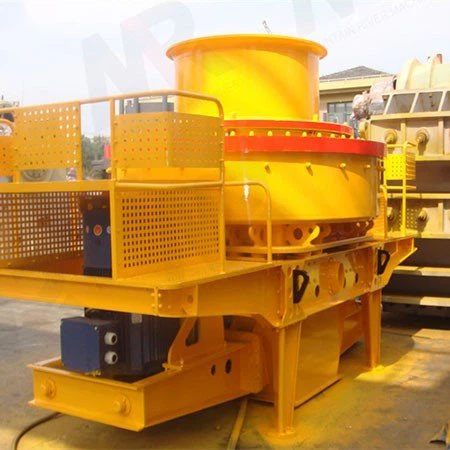

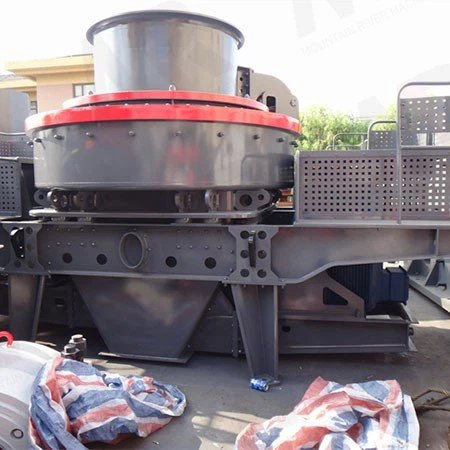

VSI5X Sand Making Machine

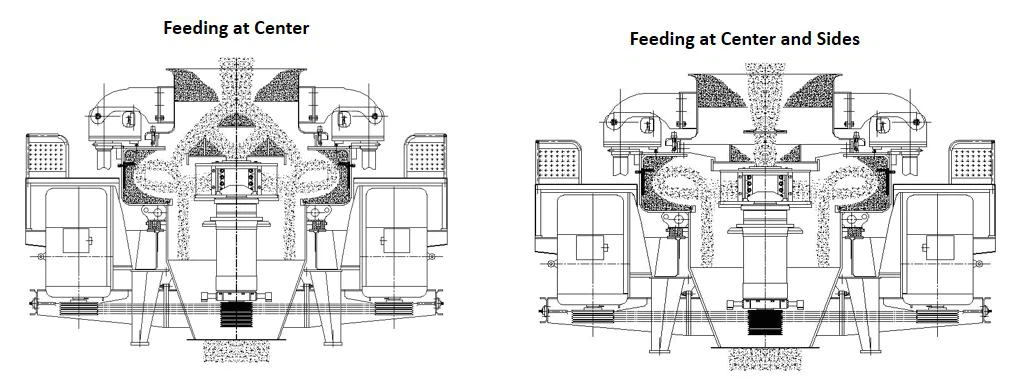

The VSl5X sand making machine is designed by introducing the German technology, able to be used for sand-making and shaping of the stone materials different in hardness. The VSl5X sand making machine adopts high-speed closed impellers to speed up materials, with stone against iron or stone against stone , central feeding adjustment and waterfall feeding available to configure according to users’ conditions to meet the different process requirements, such as material fine and super-fine crushing, machine-made sand processing and aggregate shaping.

Application

VSI5X sand making machine can crush materials like limestone, marble, granite, river stone, basalt, quartz, iron ore, copper ore, gold ore, etc.

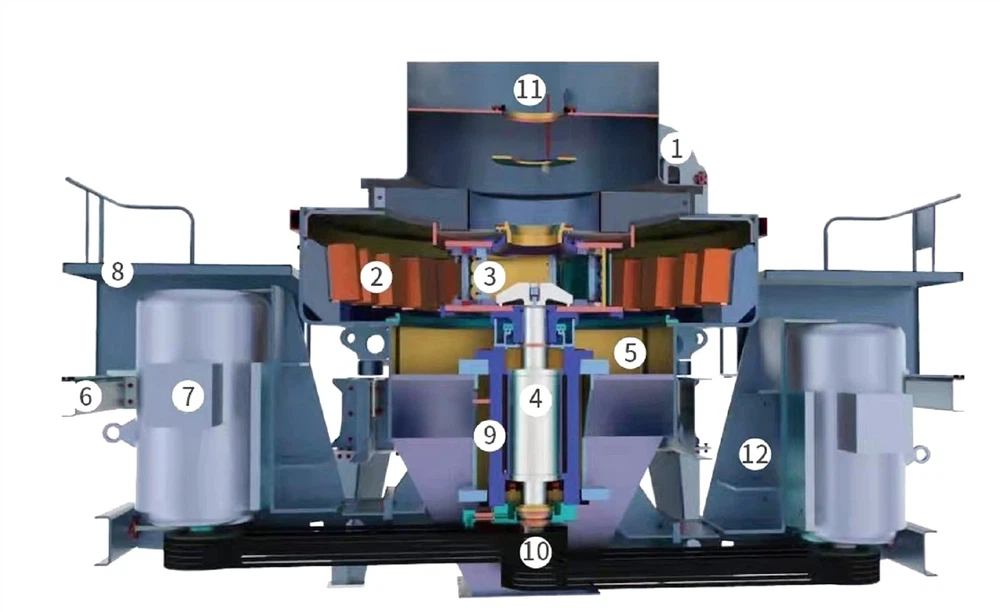

Main Structure

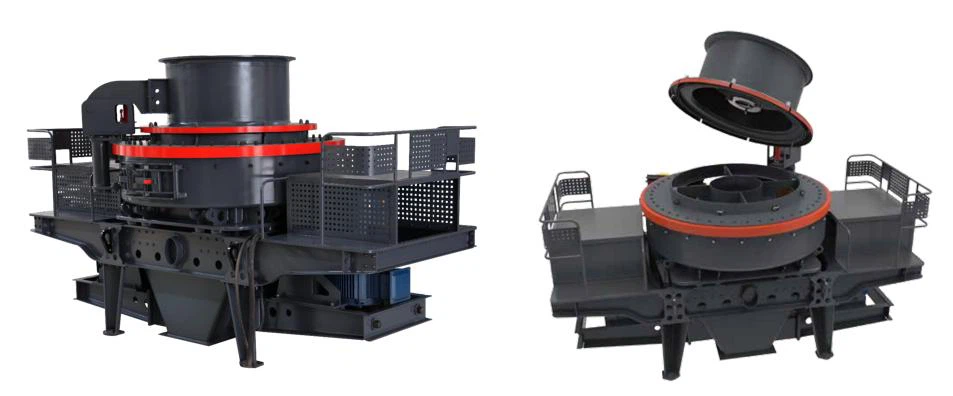

( 1 ) Hydraulic drive cover device, more convenient maintenance.

( 2 ) With the unique feeding crusher structure, it is convenient to realize the “stone crushing stone “and “stone crushing Iron”, can crush and shaping aggregate.

( 3 ) High quality materials and advanced technology, improve the equipment quality and appearance, low failure rate to ensure.

( 4 ) VSI5X series rotors adopt the design of a deep cavity, which can have more materials pass through to obtain higher capacity than ordinary rotors under the same specifications.

( 5 ) The VSI5X sand making machine is provided with a light oil lubrication device and an air cooling system, as well as a PLC intelligent system, able to realize fully automatic control of the equipment lubrication and reliably guarantee the equipment operation.
