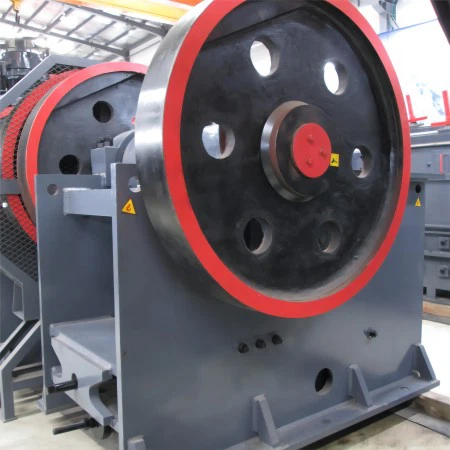

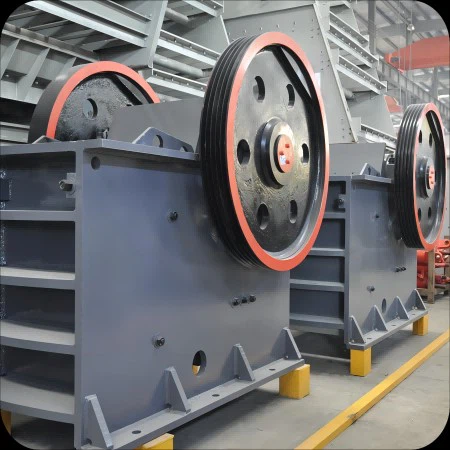

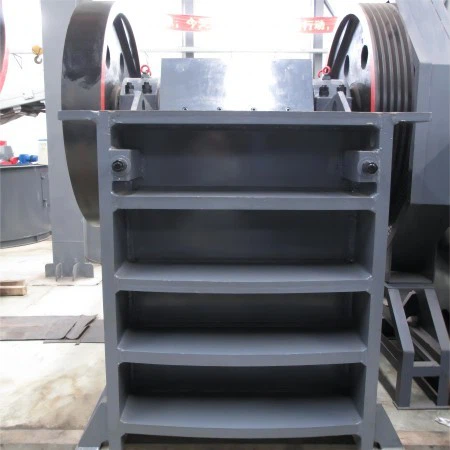

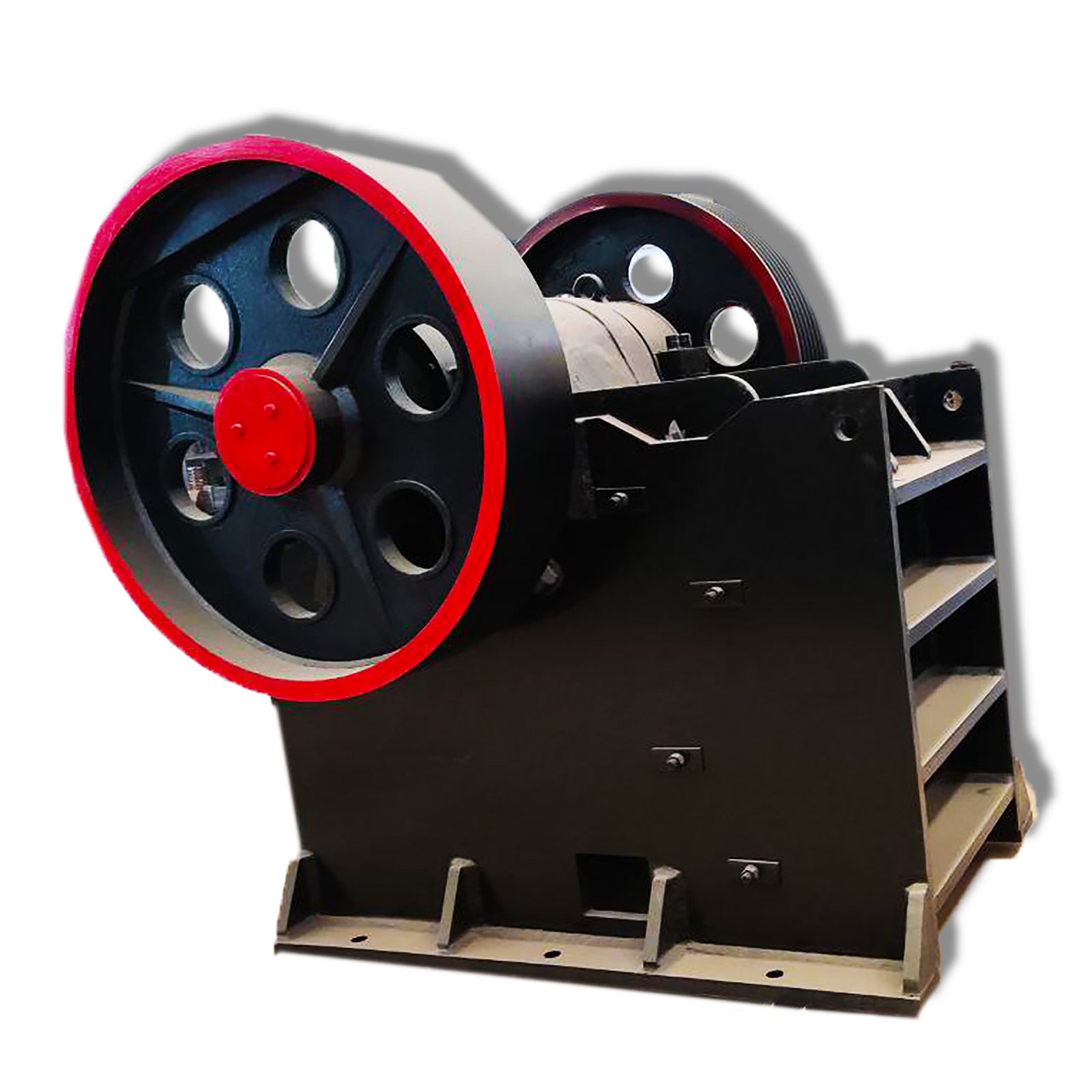

PE600X900 Jaw Crusher
PE600X900 Jaw Crusher is used as primary crushing to crush ores and bulk materials to medium particle size with the capacity 100-150TPH.
Application
PE600×900 jaw crusher is a medium-sized crushing equipment with strong practicality. It is widely used in mining, sand and gravel aggregate production, construction waste recycling and metallurgical industry.
Working Principle
The PE600X900 Jaw crusher is powered by the motor. The motor drives the belt and the grooved wheel, which is connected with the eccentric shaft. Through movement of the eccentric shaft, the movable jaw plate moves up and down, and crush the materials in the crushing cavity formed by the fixed jaw plate, the movable jaw plate, and the side plates. When the moveable jaw plate moves up, it moves towards the fixed jaw plate. Then the material will be pressed and crushed. When the moveable jaw plate moves down, it moves away from the fixed plate. At this moment, the material will be discharged at the discharge opening.
Product Parameters
Model | PE600X900 |
Max feed size (mm) | 500 |
Capacity (t/h) | 90~180 |
Power (KW) | 75 |
Speed(r/min) | 250 |
Overall dimension (mm) | 2520X1830X2300 |
Discharge setting (mm) | 65~160 |
Material of eccentric shaft | 40CrMo |
Material of jaw plates | Manganese alloy |
Toggle plate | single |
Protection | By toggle plate |
Lubrication | Grease |
Pulley connection | Locking sleeve |

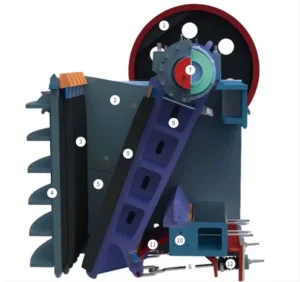

Main structure
(1) Diving Plate | (2) Adjustment Ring | (3) Concave | (4) Mantle | (5) Movable Cone |
(6) Main Shaft | (7) Frame | (8) Big Gear | (9) Eccentric Bush | |
(11) Adjustment Cap | (12) Supporting Bush | (13) Spring | (14) Bowl Bearing Frame | (10) Hopper |
(15) Small Gear | (16) Transmission Shaft | (17) Pulley |

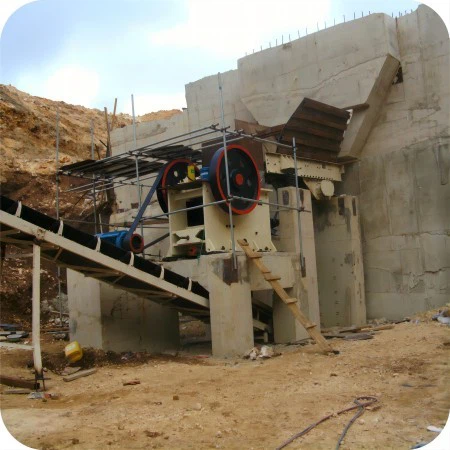

Customer Site of PE600X900 Jaw crusher
