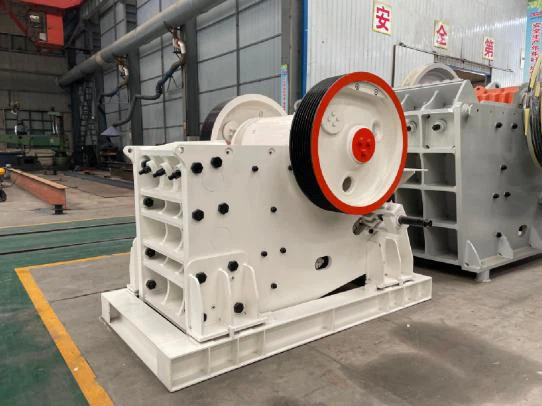

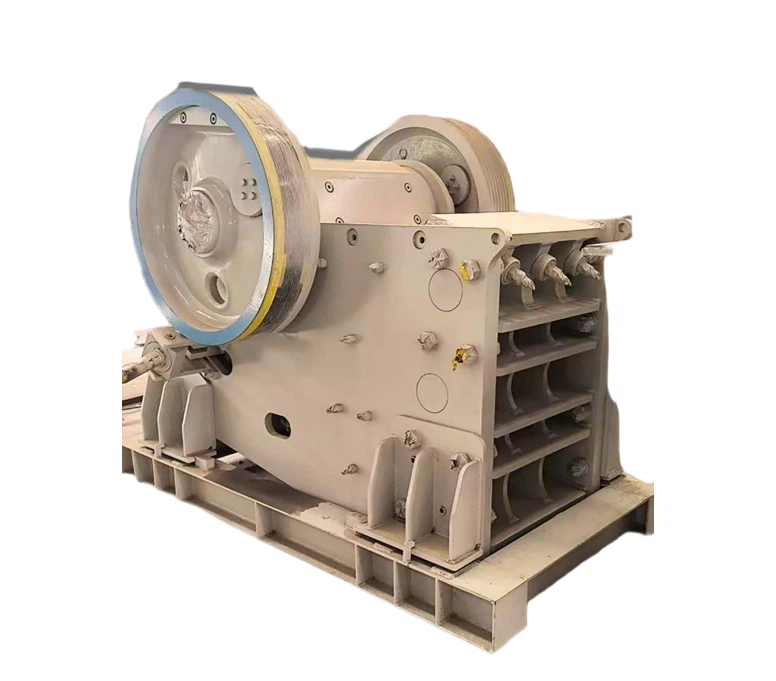

C Series Best Stone Jaw Crusher
C series jaw crusher are often used in the harsh mines and quarries in Latin America to crush high-hardness granite, basalt, iron ore, gold ore, copper ore, lead-zinc ore, lithium ore, river pebbles, etc.
Introduction
C series jaw crusher are often used in the harsh mines and quarries in Latin America to crush high-hardness granite, basalt, iron ore, gold ore, copper ore, lead-zinc ore, lithium ore, river pebbles, etc.
With heavy-duty design and advanced technology, sturdy structure, simple maintenance, it can maintain stable output even under continuous high-load operation, maximizing your production time. These are the advantages of our MR C series stone jaw crusher machine that cannot be ignored.

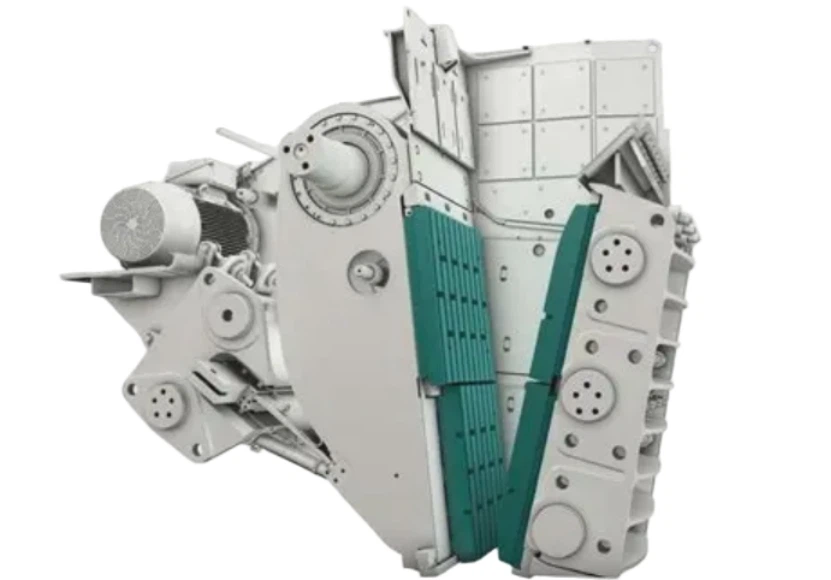

Main Structure
The frame of the C series stationary jaw crusher is subjected to great impact loads during operation, so it must have high strength and rigidity.
The crusher frame adopts a welded structure (small jaw crusher equipment is cast steel). A fixed jaw plate fastened by high-strength bolts is installed on the front frame. Upper and lower side plates are installed on the left and right sides of the frame respectively.
The movable jaw is made of high-quality cast steel, and its holes and grooves are precisely machined and strictly tested to ensure its safe and reliable operation.
Both the jaw crusher plates of fixed jaw and the movable jaw are made of high-quality manganese steel. In order to extend its service life, it adopts a symmetrical design, even if one end is worn, the other end can continue to be used. The flywheel and the groove wheel are made of high-quality cast iron, and their weight and structure ensure that the crusher works in a balanced manner.
The eccentric shaft is made of high-quality forged steel, which has been precisely machined, heat treated and tested, and has high strength and rigidity.
The bearing adopts four sets of spherical roller bearings, which have good load-bearing capacity and self-aligning performance.
Technical Advantages
The reason why the C series jaw crusher is the first choice for primary crusher in mining crushing in Latin America is that it has many advantages, such as:
Optimized crushing chamber design: This is a revolutionary breakthrough of the C series. It adopts a unique “deep chamber + steep elbow angle” design.
Deep chamber: Increases the effective volume of the crushing area, allowing more materials to be processed in the crushing chamber at the same time.
Steep elbow angle: Optimizes the movement trajectory of the movable jaw, achieves a longer horizontal stroke and a more effective vertical stroke, and makes the material more strongly squeezed in the lower part of the crushing chamber, which promotes the laminated crushing effect of the material, that is, the mutual squeezing between materials to crush the stone, which significantly improves the crushing efficiency and optimizes the product particle shape.
