Hydraulic Jaw Crusher

Introduction

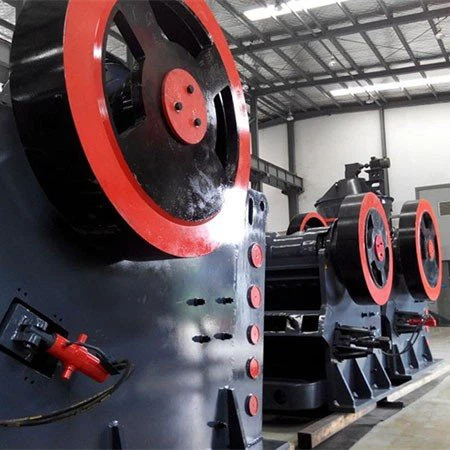

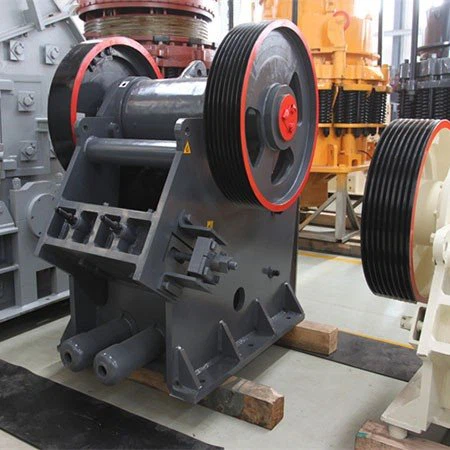

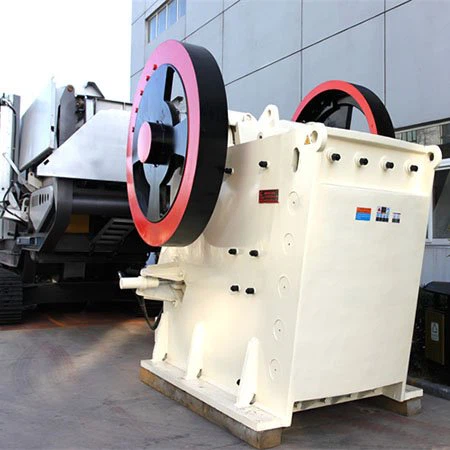

Compared to traditional jaw crushers, the PEW hydraulic jaw crusher adopts an advanced “V-shaped” crushing chamber, a redesigned frame and movable jaw structure, along with hydraulic adjustment and centralized automatic lubrication. These upgrades greatly enhance its performance, efficiency, and ease of operation.

Application

PEW hydraulic jaw crusher is suitable for processing a variety of materials, including granite, river stone, marble, basalt, limestone, quartz, sandstone, shale, dolomite, iron ore, copper ore, gold ore and even construction waste. The materials after it is crushed are also widely used in various industries.

Technical Advantages

(1) V structure cavity making the feeding opening is bigger, which will increase the production capacity.
(2) Concentrated lubricating device, faster and easier to lubricate the bearings and main shaft.
(3) Hydraulic adjusting device is adopted to adjust the discharge opening.

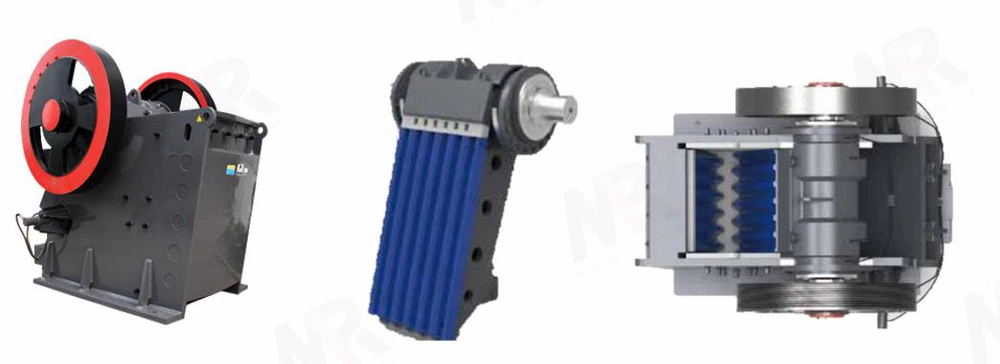

(4) Employing the integrated cast steel structure, the bearing seat can perfectly match the crusher frame.
(5) The Radial intensity is enhanced.

Technical Parameters

Model.	Inlet size (mm)	Max. Feeding Size(mm)	Output Size Range (mm)	Capacity (t/h)	Power(kw)	Weight(t)
PEW 250×1000	250×1000	220	20-40	15-50	30	6.06
PEW 250×1200	250×1200	220	20-40	20-70	37	6.7
PEW 400×600	400×600	350	40-100	15-70	30	6.5
PEW760	760×1100	620	75-200	150-350	110	24
PEW860	860×1100	720	100-225	200-500	132	32
PEW1100	1100×1200	940	150-275	300-650	185	59.2
