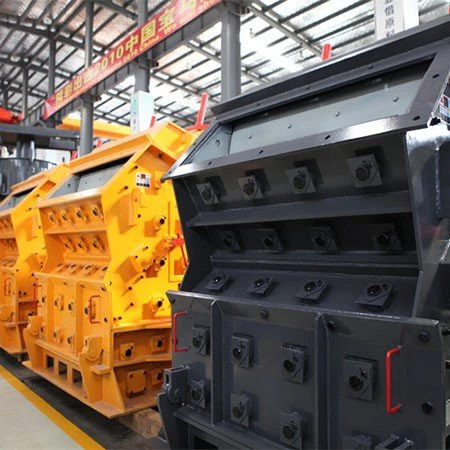

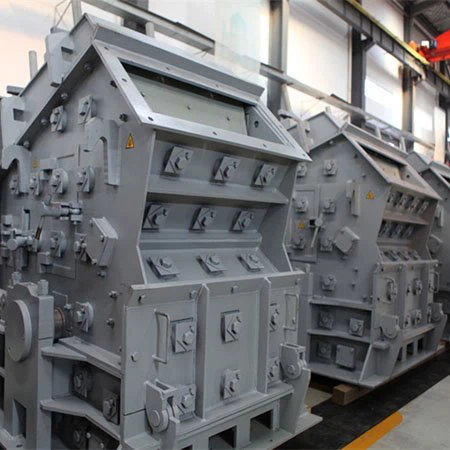

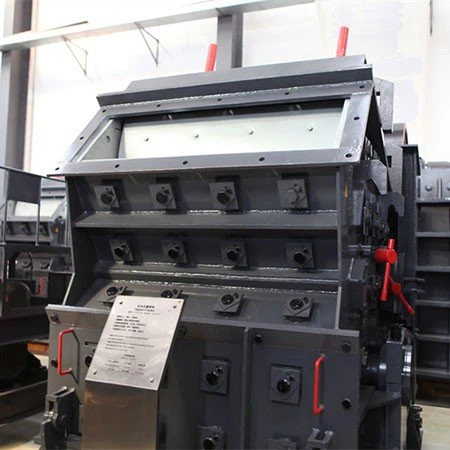

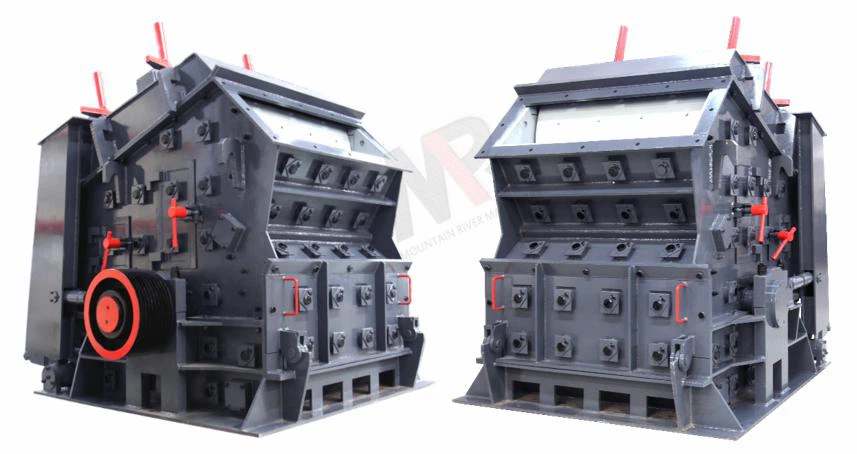

PF Impact Crusher
PF impact crusher is suitable for the mining, metallurgy, cement, building materials, chemical industry, water and electricity, etc.
Introduction of PF Impact Crusher
The PF impact crusher can crush various materials with a particle size of no more than 500 mm and a compressive strength of no more than 360 MPa. It has the characteristics of large crushing ratio, high crushing efficiency and convenient maintenance. The finished product is in the form of a cube, which is an ideal processing equipment for aggregates used in high-grade road pavement and hydro power construction. It is widely used in highway construction, water conservancy engineering and construction crushed stone processing and other fields.
Application
PF Impact Crusher can crush materials like limestone, marble, granite, river stone, basalt, quartz, iron ore, copper ore, gold ore, etc.
Main Structure
1. Adjustment Device | 2. Rack Liner | 3. Rear Rack | 4. Counter Rack | 5. Impact Liner |
6. Front Rack | 7. Blow Hammer | 8. Rotor | 9. Main Shaft |
Technical Advantages
1. The optimized cavity can produce better-shape aggregate.
2. The optimized rotor can offer higher production efficiency.
3. Easy adjustment, simple and reliable maintenance.
4. High-manganese steel impact plates are fixed with bolts to achieve a higher utilization rate and convenient replacement.
5. Hammer-plate made from high-chromium cast iron can have a longer service life.
Technical Parameters
Model | Rotor Specifications (mm) | Inlet Size (mm) | Feed Particle Size (mm) | Capacity (t/h) | Weight (t) |
PF1010 | Φ1050×1000 | 400×1080 | ＜350 | 50-80 | 11.4 |
PF1210 | Φ1250×1050 | 400×1080 | ＜350 | 60-120 | 14.2 |
PF1214 | Φ1250×1400 | 400×1430 | ＜350 | 80-160 | 15.8 |
PF1315 | Φ1300×1500 | 860×1520 | ＜350 | 120-260 | 19.3 |
