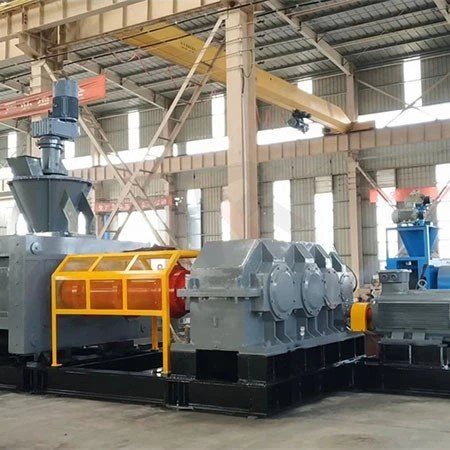

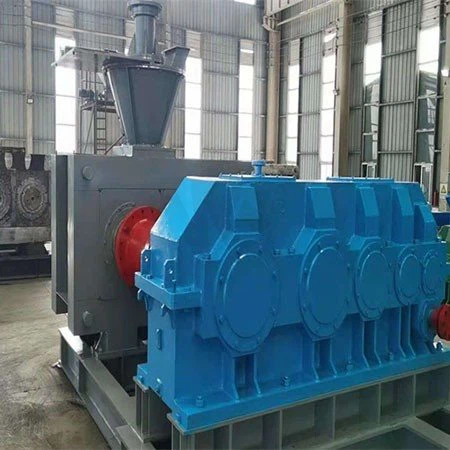

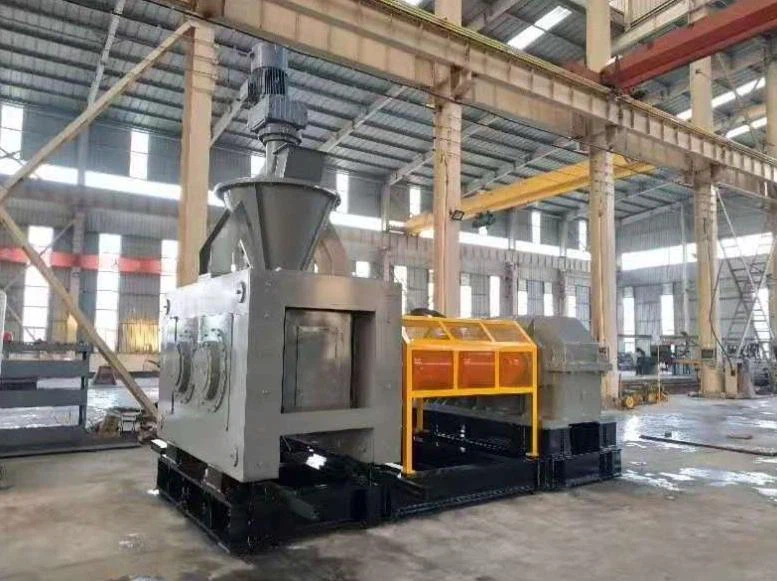

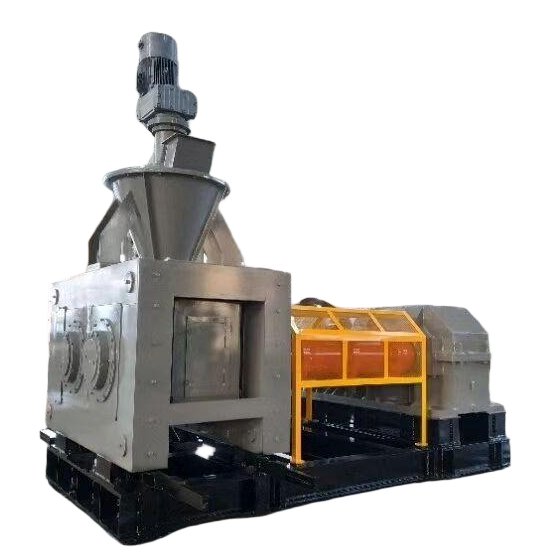

High Capacity Hydraulic Briquette Press
Hydraulic briquette press is the equipment to turn the fine powder into the briquette with specific shape.
Introduction
The high capacity hydraulic briquette press is used to press the powdery material with a certain humidity into briquette. The final briquette product has certain hardness and strength. Almost all materials can be used on the double-roll briquette machine, and the finished products are easy to transport and have good industrial uses.
Application
Hydraulic briquette press is widely used in different industry. The coal and charcoal powder can be pressed into briquette for BBQ. Bauxite can be briquetted to make refractory material. Sawdust can be briquetted for easy transportation and storage. The iron ore powder can be recycled after being briquetted, and then steel-making in a blast furnace. Magnesium oxide powder can be used to produce magnesium metal by process of briquette.

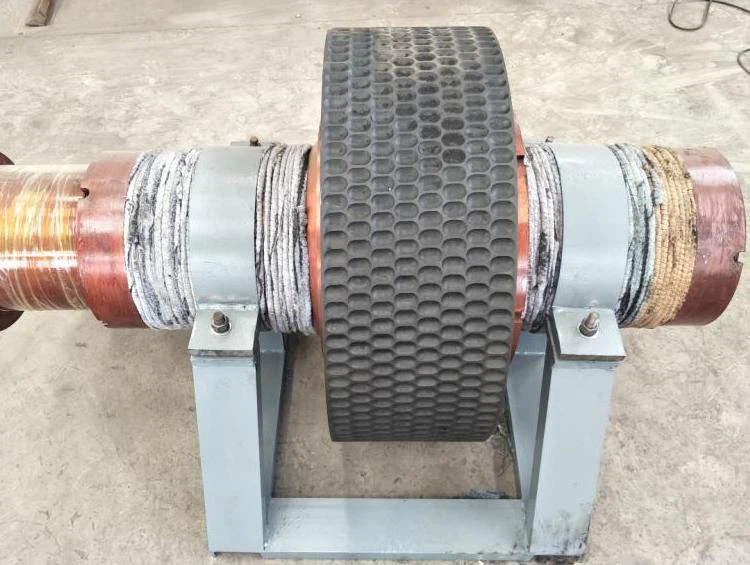

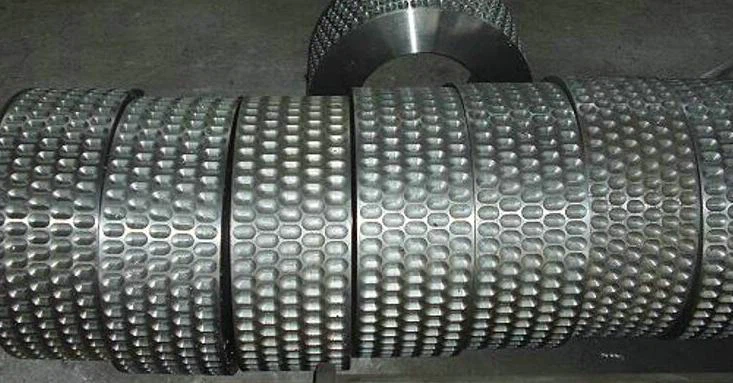

Rollers
(1) High quality forging alloy(Cr9Mo2)
(2) Whole-quenching process and tempering process.
(3) Multiple flaw detection tests to ensure that the product is qualified
(4) High hardness, high wear resistance, long service life
Technical Parameters
Model | LYQ0.5 | LYQ1.0 | LYQ1.5 | LYQ2.0 | LYQ3.0 | |
Diameter of roller | Φ299 | Φ367 | Φ367 | Φ399.5 | Φ522 | |
No. of slots in roller surface | 108 | 200 | 200 | 240 | 300/360 | |
Width of roller surface | 180 | 183 | 183 | 252 | 196 | |
Type& quantity of bearing | 7522 | 2097730 | 2097730 | 2097736 | 2097744 | |
4sets | 4sets | 4sets | 4sets | 4sets | ||
Capacity (kg/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
Main motor | Model | YCT250-4A | YCT315-4AB | YCT315-4A | BY67315-413 | Y250M-4 |
Power | 18.5KW | 37KW | 45KW | 45KW | 55KW | |
Pre-press motor | Model | YCT200-4B | YCT225-4A | YCT225-4A | YCT225-4A | YCT225-4A |
Power | 7.5KW | 11KW | 15KW | 15KW | 15KW | |
Screen's motor | Power | 0.6KW | ||||
Oil pump motor | Model | DZB0.8 | DZB2.2 | |||
Power | 1.8KW | |||||
Main reducer | ZA650-48.57 | ZQ850-48.57 | ZQ850-48.57 | ZQ1000 | ZS1250 | |
Pre-press reducer | WHC15-31.5 | WHC18-31.5 | WHC18-31.5 | WHC21-31.5 | WHC-160 | |
Model | DBD0.8 | DBD0.8 | DBD0.8 | DBD0.8 | DZB2.2 | |
Rated flow | 0.8L/min | 0.8L/min | 0.8L/min | 0.8L/min | 2.2L/min | |
Rated pressure | 800kgf/c㎡ | 800kgf/c㎡ | 800kgf/c㎡ | 800kgf/c㎡ | 800kgf/c㎡ | |
Recommend working pressure | 85-120 kgf/c㎡ | 120-150 kgf/c㎡ | 120-150 kgf/c㎡ | 140-160 kgf/c㎡ | 140-160 kgf/c㎡ | |
Diameter | Φ150 | Φ200 | Φ200 | Φ200 | Φ160 | |
Max pushing pressure | 42T | 94T | 94T | 120T | 128T | |
Customer Site
