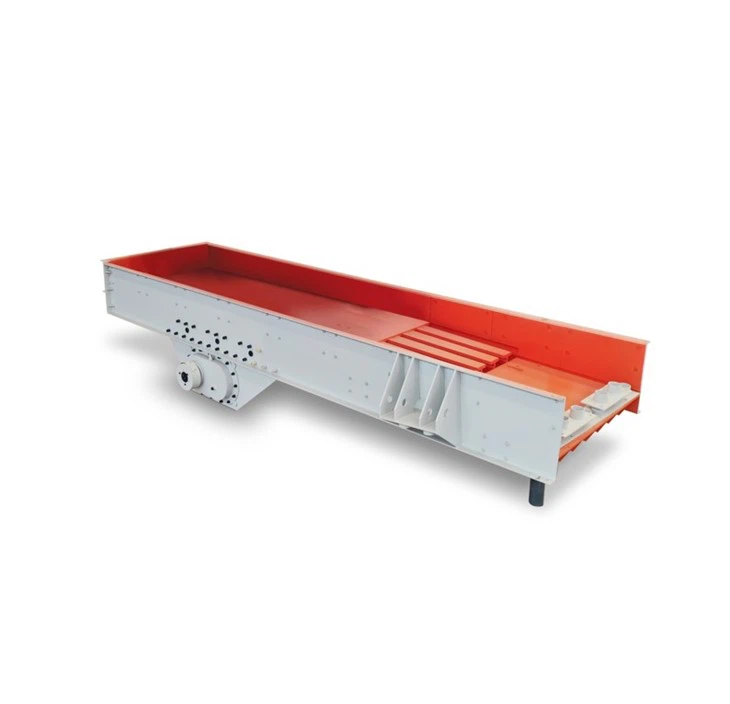

Traditional Vibrating Feeder
The vibrating feeder feeds materials continuously and evenly from the hopper to the receiving equipment.
Introduction
The ZSW traditional vibrating feeder is a kind of equipment that can uniformly, regularly and continuously feed granular materials from the storage bin to the receiving device. In the gravel production line, it can continuously and evenly feed the crushing machinery and coarsely screen the materials.
Application
ZSW traditional vibrating feeder is widely used in mineral processing, metallurgy, coal, chemical industry, building materials and other industrial sectors to complete the feeding and batching of various granular materials.
Main Features
1. Good regulation performance
The exciting force can be adjusted, the flow can be changed and controlled at any time, the adjustment is convenient and the stable.
2. Easy to install and maintain
Light weight, small size, easy installation and maintenance.
3. Stable vibration and reliable operation
The spring device buffers the vibration of the body, effectively avoiding damage to the body and prolonging the service life.
4. Low noise and low power consumption
When adopting a closed structure body, dust pollution can be prevented.
Technical Parameters
Model | Max. Feed Size（mm） | Capacity （t/h） | Eccentric Shaft Speed(rpm) | Power (kw) | Overall Dimension(mm) |
ZSW380×95 | 500 | 90-100 | 800 | 11 | 3970×2259×1880 |
ZSW420×110 | 580 | 120-240 | 800 | 15 | 4392×2519×2003 |
ZSW490×110 | 580 | 120-240 | 800 | 18.5 | 5093×2545×2014 |
ZSW590×110 | 580 | 120-240 | 800 | 22 | 6092×2610×2415 |
ZSW500×130 | 750 | 140-550 | 800 | 30 | 5206×2842×2467 |
ZSW560×130 | 750 | 140-550 | 800 | 30 | 5806×2842×2467 |
ZSW600×130 | 750 | 140-550 | 800 | 30 | 6124×2863×2051 |
ZSW500×160 | 900 | 250-1000 | 900 | 37 | 5206×3298×2544 |
ZSW560×160 | 900 | 250-1000 | 900 | 37 | 5806×3298×2544 |
