Belt Conveyor for Material Transportation
Belt conveyors are widely used in mining, metallurgy, coal and other industries to transport loose materials or finished items.

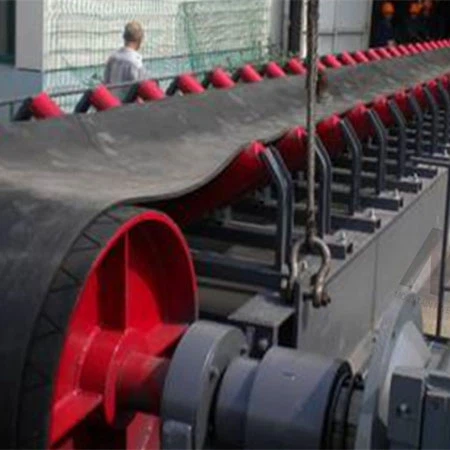

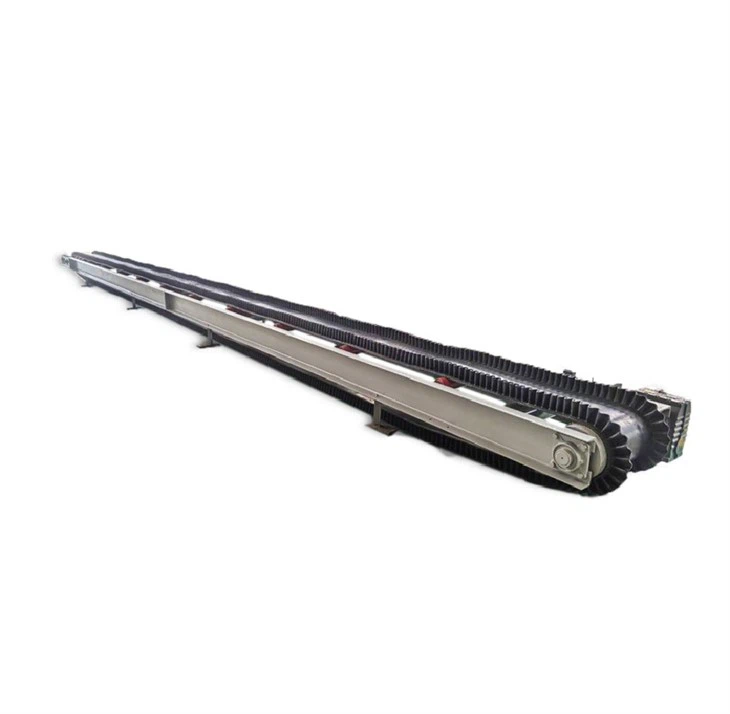

Introduction of Belt Conveyor for Material Transportation
Belt conveyors can be used to transport products in a straight line or through changes in elevation or direction. The belt conveyor consists two main rollers and some different smaller rollers to support the rubber belt. It is mainly used in mining industry for transportation.
Application
It is widely used for conveying Bulk Materials like Grains, Ore, Coal, Sand etc., over gentle slopes or gentle curvatures.

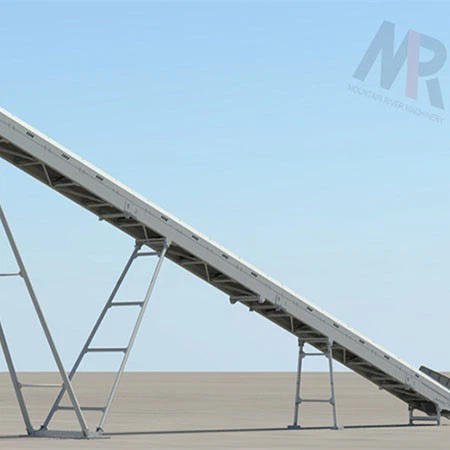

Main Structure
1. Reception chute | 2. Support Leg | 3. Tail Frame Assembly | 4. Ladder |
5. Middle Frame Assembly | 6. Walk way handrail | 7. Supporting leg Middle Frame Assemble | 8. Upper Pin |
9. Lower Pin | 10. Base | 11. Head Frame | 12. Assemble |
13. Supporting Leg | 14. Slider | 15. Driven assembly | 16. Head chute |
Technical Parameters
BeltWidth(mm) | Belt Length (m) / Power (kw) | BeltSpeed(m/s) | Capacity(t/h) | ||
400 | <12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2.0 | 40 -80 |
500 | <12/3 | 12-30/4 | 20-30/5.5 | 0.8-2.0 | 78-191 |
650 | <12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2.0 | 131-323 |
800 | <10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2.0 | 278-546 |
1000 | <10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2.0 | 435-853 |
1200 | <10/7.5 | 10-20/11 | 20-25/15 | 1.0-2.0 | 655-1284 |

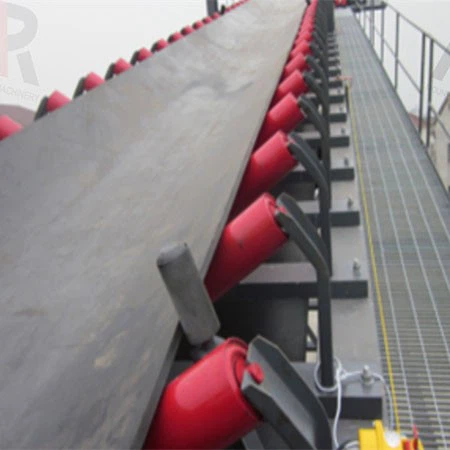

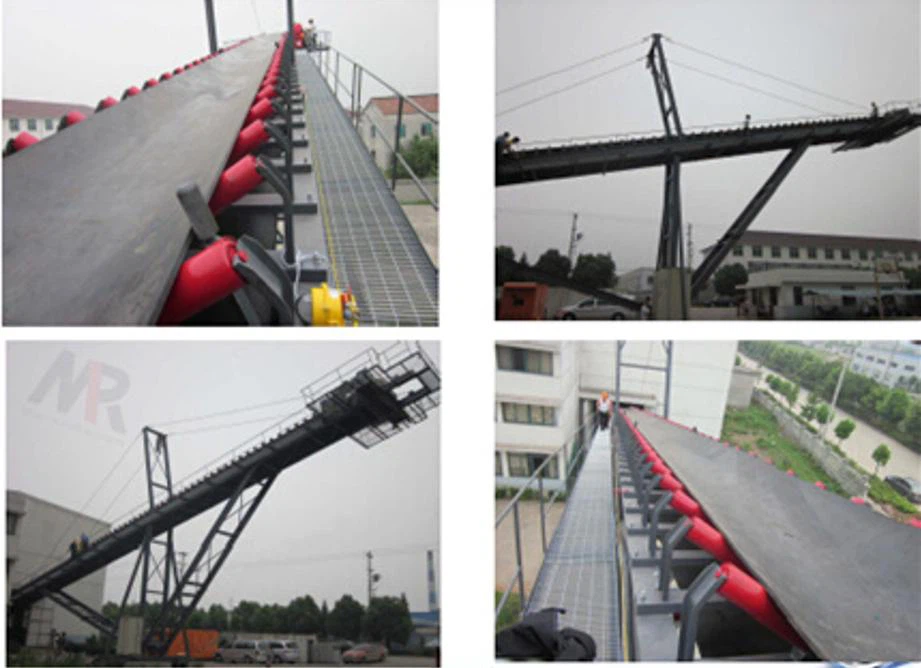

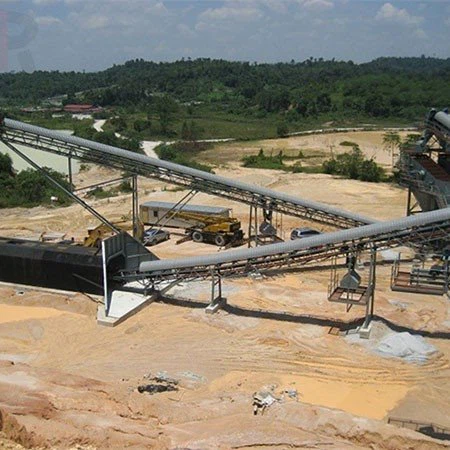

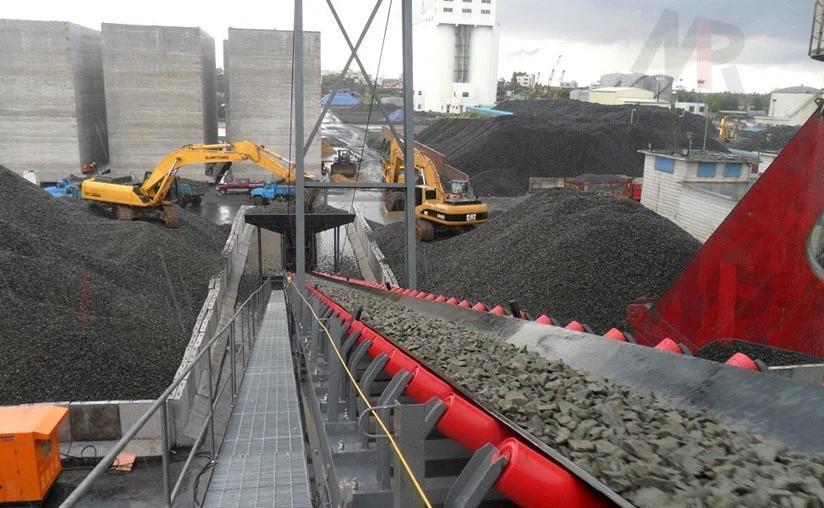

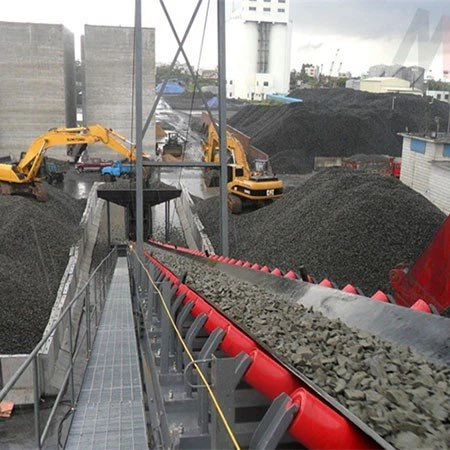

Customer Site
