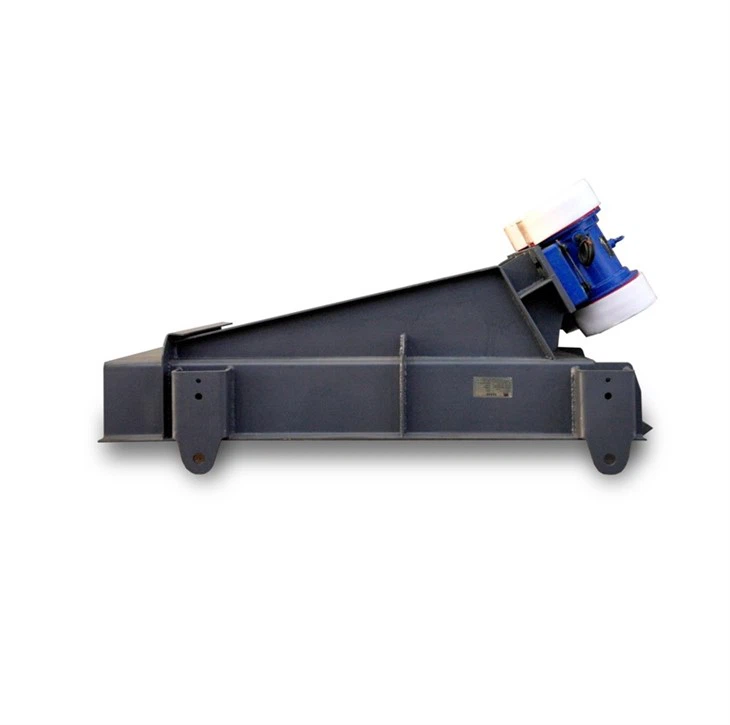

Small Vibrating Feeder
The vibrating feeder feeds materials continuously and evenly from a certain equipment (hopper, storage bin, etc.) to the receiving equipment.
Introduction
GZD Series Vibrating Feeder is mainly used to feed material into primary crusher evenly and continuously. As the capacity is very low, normally when feeding the transited material into the belt conveyor, GZD vibrating feeder is used widely.
Application
GZD vibrating feeder is a small feeder, it is normally used for crushing plant with small capacity, or screening plant for small capacity. The input size is normally less than 200mm, it is hanged by hooks down side the material hopper.
Main Features
(1) Strong feeding capacity, it adopts a vibrating exciter.
(2) Stable performance, it can be long-term continuous working.
(3) Low production cost, the equipment is very simple.
Technical Parameters
Model | Max. Feed Size | Capacity | Eccentric Shaft Speed | Power | Overall Dimension |
(mm) | (t/h) | (rpm) | (kw) | (mm) | |
GZD180×80 | 300 | 30-200 | 970 | 2*1.5 | 2200×1100×800 |
GZD200×120 | 300 | 80-500 | 970 | 2*2.2 | 2000×1200×855 |

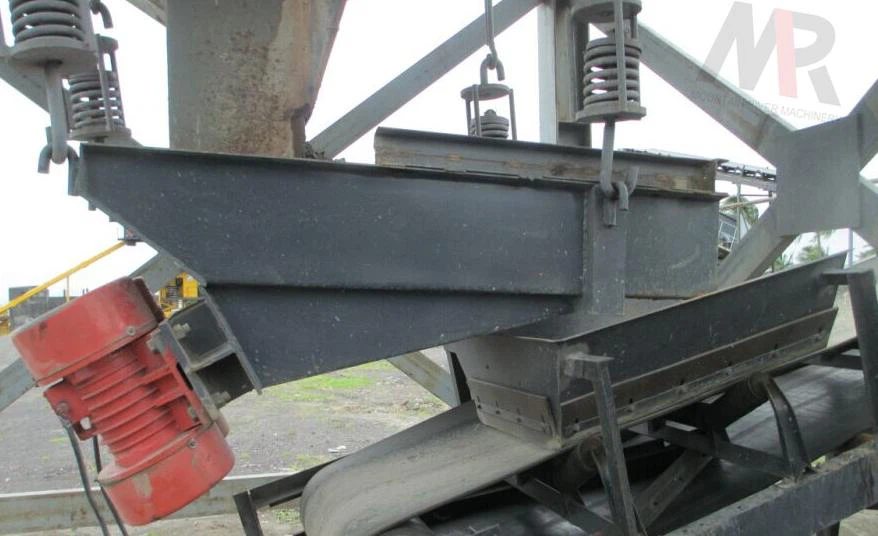

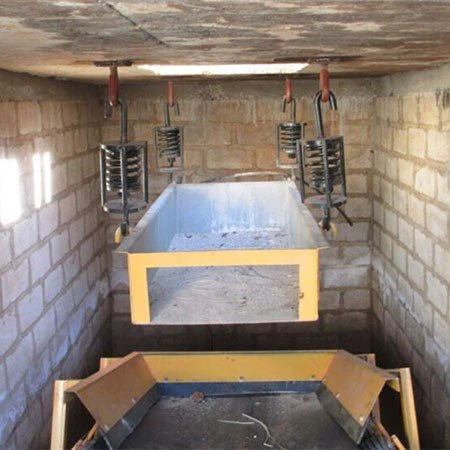

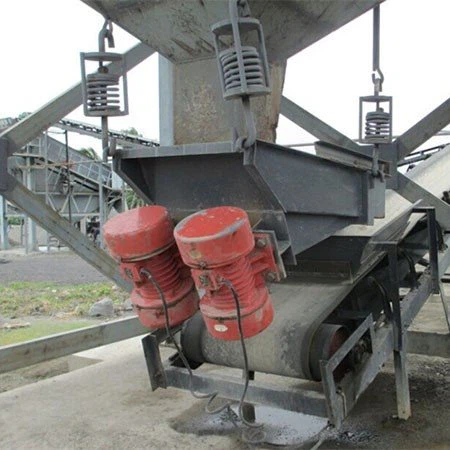

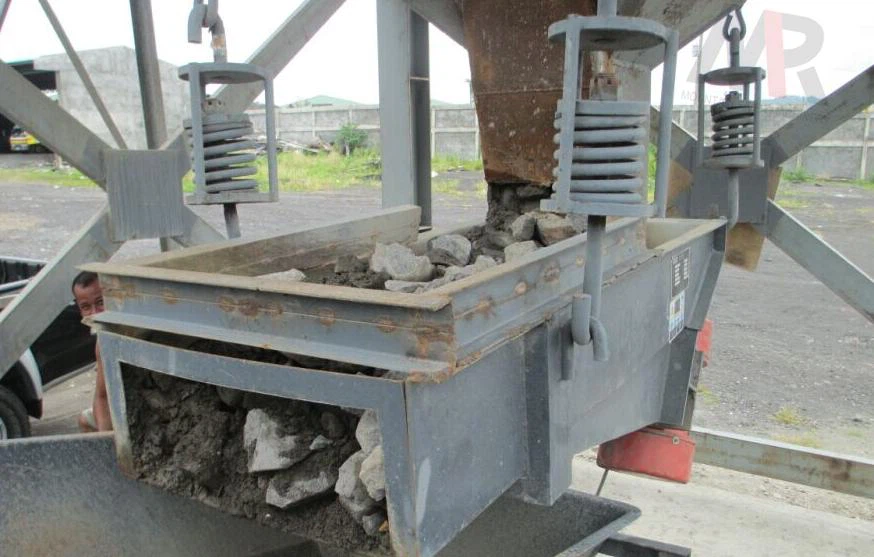

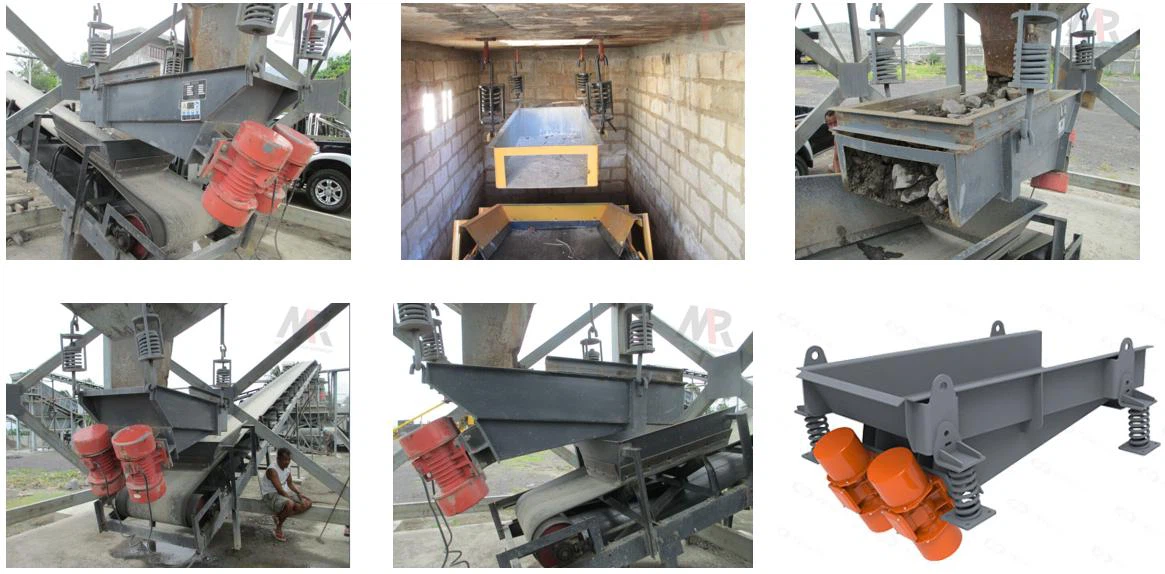

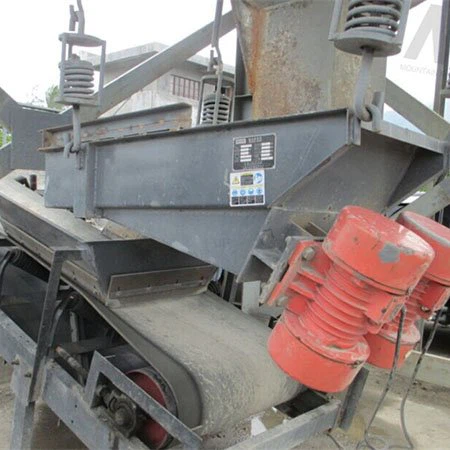

Customer Site
