Y Vibrating Screen

Capacity: 7.5-700tph

The high-speed eccentric wheel drives the eccentric shaft.

Click Here

It is used to classify various types of stone, thereby effectively improving the production efficiency of the production line.

Plants in Latin America

200tph Basalt Crushing Plant

200-250tph Basalt Crushing Plant

60tph Slate Crushing Plant

100-150tph Aggregate Production Plant

200tph River Stone Crushing Plant

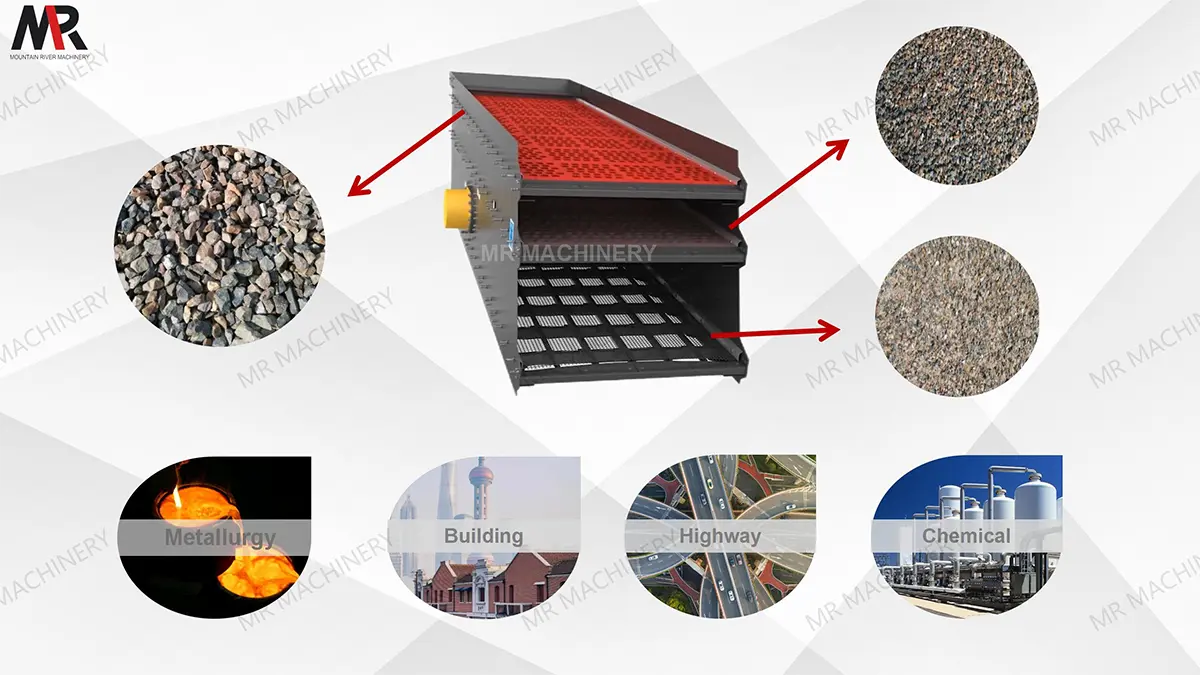

Technical Advantages

High screening efficiency

A high-speed eccentric wheel drives the entire eccentric shaft as the vibration exciter, thereby achieving a stable vibration source and powerful vibration force.

High quality bearings

The equipment uses high-speed bearings from internationally recognized brands, further improving its stability.

Stable operation

Due to its optimized structural design, the equipment features stable vibration and a low noise level.

High structural strength

The side panels are manufactured using single-panel laser cutting technology, and the structural components are joined using high-strength bolts.

Internal Structure

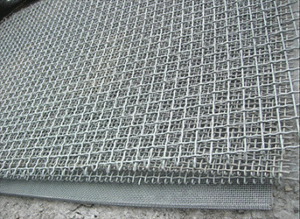

Screen mesh

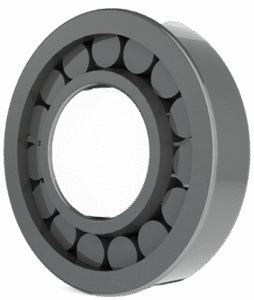

Bearing housing

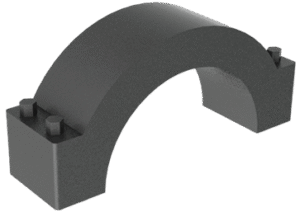

Bearing

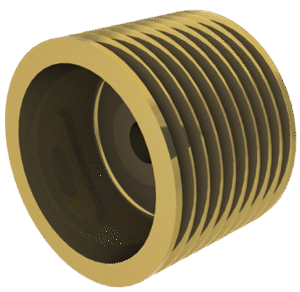

Motor pulley

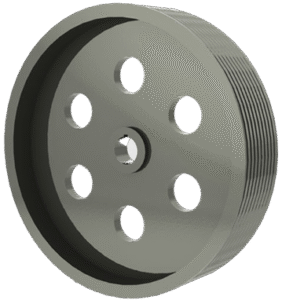

Main machine pulley

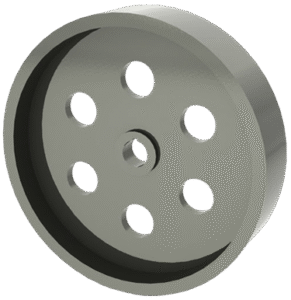

Flywheel

Eccentric shaft

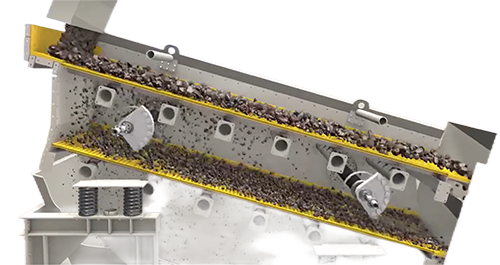

Working Principle

A vibrating screen uses a motorized vibrator to generate high-frequency vibrations, causing the material on the screen surface to lift and move forward. Particles smaller than the screen opening size pass through it by the action of gravity and vibration, achieving separation, while larger particles continue to move along the screen surface until they are discharged. This allows the material to be classified by particle size or to be deslimed and dewatered. Its main function is to use vibration for screening and material transport.

Technical Parameters

Modelo	Capas	Tamaño de Criba (mm)	Max. Tamaño de Alimentación (mm)	Capacidad (t/h)	Frequencia de Alimentación (Hz)	Potencia (kW)	Dimensión (mm)
2YA1237	2	1200*3700	200	7.5-80	800-970	15	464222502659
3YA1237	3	1200*3700	200	7.5-80	800-970	15	489822503133
2YA1548	2	1500*4800	400	50-208	970	15	580225853053
3YA1548	3	1500*4800	400	50-250	970	15	604625853537
2YA1848	2	1800*4800	400	50-260	970	18.5	580229473053
3YA1848	3	1800*4800	400	50-300	970	18.5	604629473538
2YA1860	2	1800*6000	400	50-300	970	18.5	701129473471
3YA1860	3	1800*6000	400	50-350	970	22	724329873955
4YA1860	4	1800*6000	400	50-350	970	22	749829874439
2YA2160	2	2100*6000	400	100-500	730	22	707634023666
3YA2160	3	2100*6000	400	100-500	730	30	728434674092
4YA2160	4	2100*6000	400	100-500	730	30	755134674582
2YA2460	2	2400*6000	400	150-700	730	37	704637703603
3YA2460	3	2400*6000	400	150-700	730	37	728937824092
