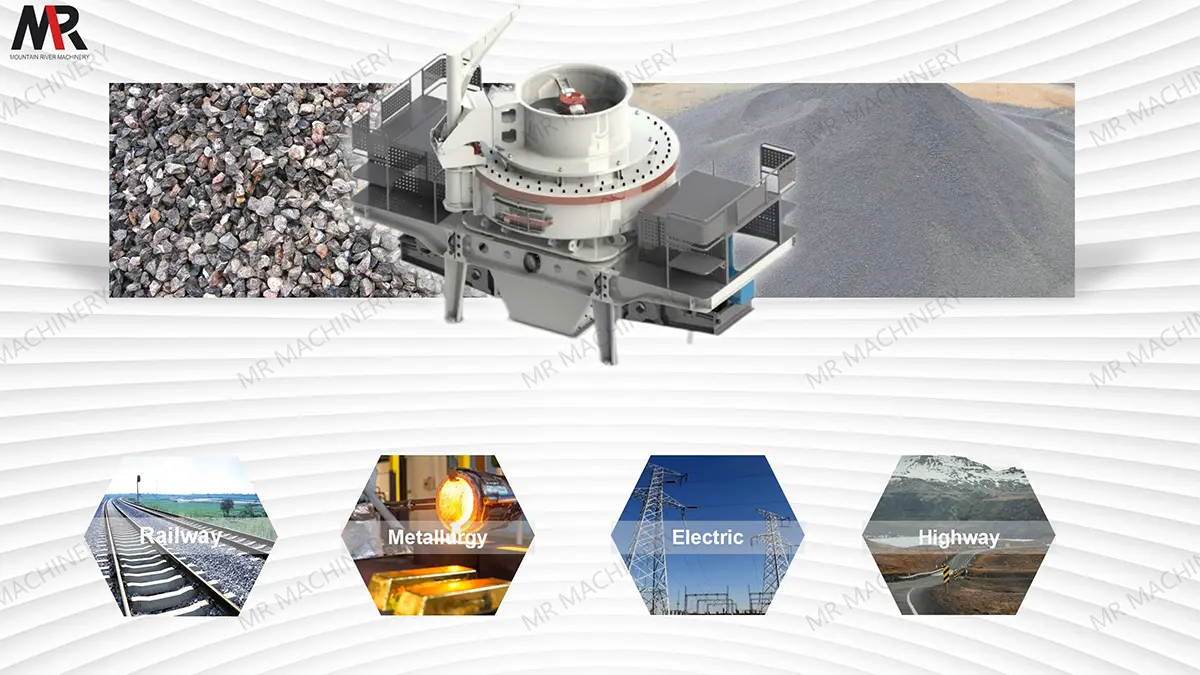

Crushing and shaping of metallic and non-metallic minerals, artificial sands, and various metallurgical slags.
Technical Advantages
Large processing capacity and high performance
The improved continuous adjustment feeding method, higher spindle speed, and larger crushing chamber enable the machine to achieve greater production capacity in actual operation.
Low wear parts consumption
The optimized crushing chamber allows materials to achieve the optimal impact angle, reducing friction with the wear-resistant parts and directly lowering the equipment’s operating costs.
Easy-maintenance hydraulic system
This machine is equipped with a hydraulic opening device, making it easier and faster to inspect and replace components inside the crushing chamber, thereby reducing downtime.
Excellent particle shape
The impact crushing principle allows this machine to produce materials with an optimal particle shape.

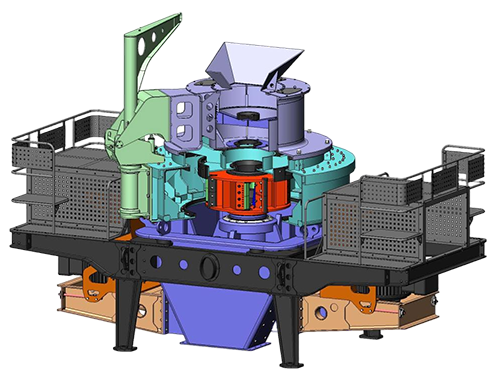

Internal structure

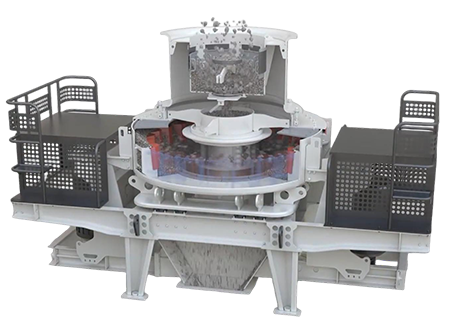

Working principle
VSI6X primarily operates on two principles: “rock-on-rock” and “rock-on-iron”. The material enters a high-speed rotating rotor and is accelerated outward, colliding and rubbing against the material on the circumferential protection plates or impact blocks, thereby achieving crushing. Through repeated impacts and grinding, the material is pulverized into sand particles of the required size and finally discharged through a screen plate with controlled particle size.
Technical Parameters
Modelo | Máximo Tamaño de Alimentación (mm) - Alimentación al Centro | Máximo Tamaño de Alimentación (mm) - Alimentación al Centro y lados | Capacidad de Rendimiento (t/h) - Alimentación al Centro | Capacidad de Rendimiento (t/h) - Alimentación al Centro y lados | Capacidad de Rendimiento (t/h) - Velocidad de Eje (rpm) | Capacidad de Rendimiento (t/h) - Potencia (kW) | Capacidad de Rendimiento (t/h) - Dimensión (mm) |
VSI6X8018 | 30 | 40 | 109-117 | 131-140 | 1300-1700 | 90*2 | 4100*2300*2750 |
VSI6X9026 | 35 | 45 | 167-179 | 200-215 | 1200-1500 | 132*2 | 4200*2500*3150 |
VSI6X1040 | 40 | 50 | 264-283 | 317-342 | 1100-1400 | 200*2 | 5000*2600*3550 |
VSI6X1150 | 45 | 55 | 344-368 | 413-442 | 1000-1300 | 250*2 | 5500*2750*3950 |
VSI6X1263 | 50 | 60 | 454-486 | 545-583 | 900-1200 | 315*2 | 5700*2980*4190 |
