VSI5X has different modes: “rock-on-iron”, “rock-on-rock”, “central feeding”, and “cascade feeding”.
Technical Advantages
Easy maintenance
The hydraulically driven cover plate device facilitates maintenance.
Intact finished particles
VSI5X can easily perform the “rock-on-rock” and “rock-on-iron” crushing modes and produce cubic aggregates of sand and gravel.
Large processing capacity
The VSI5X rotor features a deep-cavity design, which allows for higher material throughput and therefore greater processing capacity than conventional rotors of the same size.
Quality assurance
High-quality materials and advanced processes improve the quality and appearance of the equipment, ensuring a low failure rate.

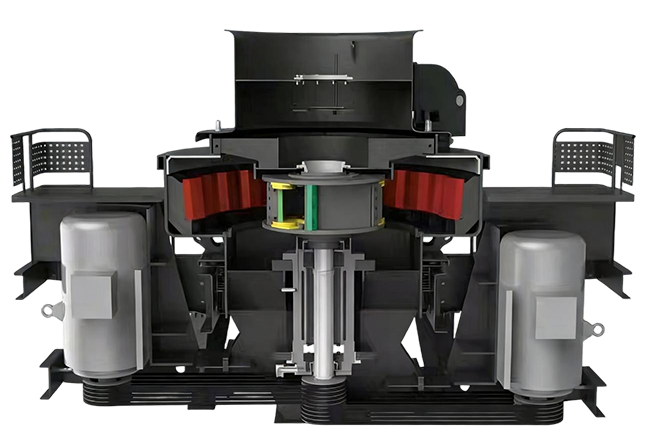

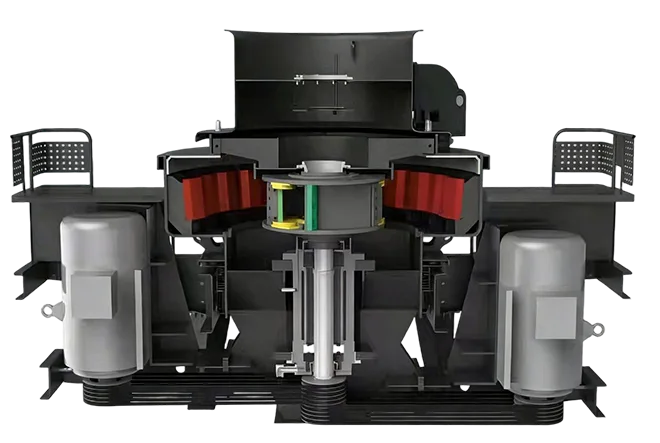

Internal structure

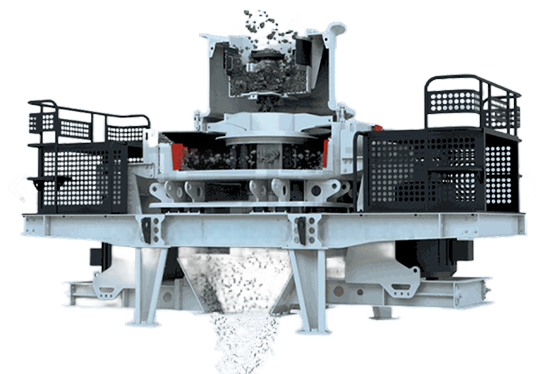

Working principle
VSI5X primarily operates on two principles: “rock-on-rock” and “rock-on-iron”. The material enters a high-speed rotating rotor and is accelerated outward, colliding and rubbing against the material on the circumferential protection plates or impact blocks, thereby achieving crushing. Through repeated impacts and grinding, the material is pulverized into sand particles of the required size and finally discharged through a screen plate with controlled particle size.
Technical Parameters
Modelo | Capacidad (t/h) - Alimentación al Centro y Lados | Capacidad (t/h) - Alimentación al Centro | Max. Tamaño de Alimentación (mm) - Material Suave | Max. Tamaño de Alimentación (mm) - Material Duro | Velocidad de Rotación de Eje Principal (rpm) | Potencia (kW) | Dimensión (mm) |
VSI5X7615 | 150-280 | 70-140 | <35 | <30 | 1700-1900 | 75*2 | 4100*2330*2300 |
VSI5X8522 | 240-380 | 120-200 | <40 | <35 | 1500-1700 | 110*2 | 4140*2500*2700 |
VSI5X9532 | 350-540 | 180-280 | <45 | <40 | 1300-1510 | 160*2 | 4560*2600*2900 |
VSI5X1145 | 500-640 | 250-360 | <50 | <45 | 1100-1310 | 220*2 | 5100*2790*3320 |
