The S5X vibrating screen is widely used in industries such as aggregate production, metallurgy and mining, coal, chemical industry, and recycling.
Technical Advantages
High-efficiency processing
The materials on the screening deck are activated, moving and rolling more quickly, thereby improving processing capacity and separation efficiency.
Innovative structure
Advanced technology that uses an eccentric block as the excitation force, resulting in high excitation power.
Smooth operation
Compared to metal springs, rubber springs offer advantages such as longer service life, corrosion resistance, and reduced impact on the foundation.
Low energy consumption
The high frequency and inclined structure enable high screening efficiency, high throughput, long service life, low energy consumption, and low noise level.

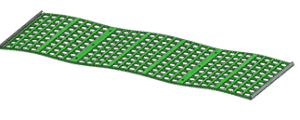

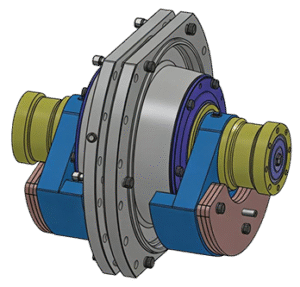

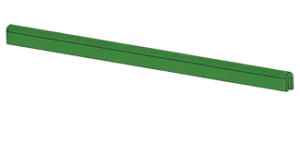

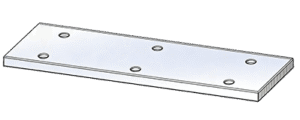

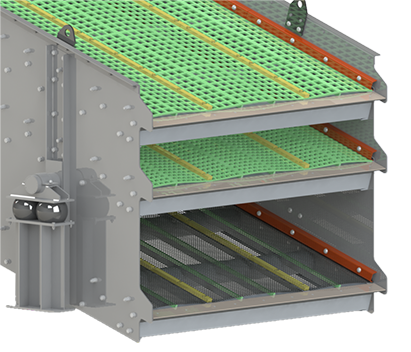

Internal Structure

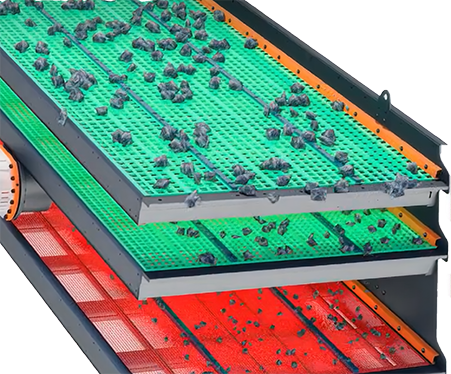

Working Principle
The S5X vibrating screen uses a motorized vibrator to generate high-frequency vibrations, causing the material on the screen surface to lift and move forward. Particles smaller than the screen opening size pass through the screen by gravity and vibration action, achieving separation, while larger particles continue moving along the screen surface until discharge. This allows for particle size classification, desliming, and dewatering. Its main function is to use vibration for screening and material conveying.
Technical Parameters
Modelo | Tamaño (mm) | Capas | Ángulo° | Velocidad (rpm) | Potencia (kW) | Capacidad (t/h) | Tamaño de Malla (mm) |
S5X1845-2 | 1800*4500 | 2 | 18(18-25) | 800～900 | 15 | 60-450 | 2-70 |
S5X1845-3 | 1800*4500 | 3 | 18(18-25) | 800～900 | 22 | 60-450 | 2-70 |
S5X1860-2 | 1800*6000 | 2 | 18(18-25) | 800～900 | 15 | 75-600 | 2-70 |
S5X1860-3 | 1800*6000 | 3 | 18(18-25) | 800～900 | 30 | 75-600 | 2-70 |
S5X1860-4 | 1800*6000 | 4 | 18(18-25) | 800～900 | 37 | 75-600 | 2-70 |
S5X2160-2 | 2100*6000 | 2 | 18(18-25) | 800～900 | 22 | 85-700 | 2-70 |
S5X2160-3 | 2100*6000 | 3 | 18(18-25) | 800～900 | 30 | 85-700 | 2-70 |
S5X2160-4 | 2100*6000 | 4 | 18(18-25) | 800～900 | 37 | 85-700 | 2-70 |
S5X2460-2 | 2400*6000 | 2 | 18(18-25) | 800～900 | 22 | 100-800 | 2-70 |
S5X2460-3 | 2400*6000 | 3 | 18(18-25) | 800～900 | 30 | 100-800 | 2-70 |
S5X2460-4 | 2400*6000 | 4 | 18(18-25) | 800～900 | 37 | 100-800 | 2-70 |
S5X2760-2 | 2700*6000 | 2 | 18(18-25) | 800～900 | 30 | 120-900 | 2-70 |
S5X2760-3 | 2700*6000 | 3 | 18(18-25) | 800～900 | 37 | 120-900 | 2-70 |
S5X3072-2 | 3000*7200 | 2 | 20(20-25) | 800～900 | 37 | 150-1200 | 2-70 |
