PFW Hydraulic Impact Crusher

Capacity: 90-450tph

High-efficiency hydraulic control / easy operation / high performance.

Click Here

Compared to the traditional PF impact crusher, the PFW hydraulic impact crusher has simpler operation, a longer lifespan of wear parts, and higher performance.

Plants in Latin America

200tph Basalt Crushing Plant

200-250tph Basalt Crushing Plant

60tph Slate Crushing Plant

100-150tph Aggregate Production Plant

200tph River Stone Crushing Plant

Technical Advantages

High-strength integral rotor

Featuring a high-precision cast steel rotor, it offers a large moment of inertia. This results in smoother operation, greater impact force, and effective reduction of material blockages.

Hydraulic adjustment of discharge particle size

The distance between the impact frame and the rotor (i.e., the size of the discharge particles) can be continuously adjusted by a hydraulic system, simplifying its operation.

Extremely high wear resistance

The rotor hammer plates are installed more securely and can be reused several times after wear by modifying their angle, which extends their service life and reduces maintenance costs.

Adjustable impact plate

In some models, the angle of the impact plate is adjustable, which further optimizes the crushing path and controls the product gradation.

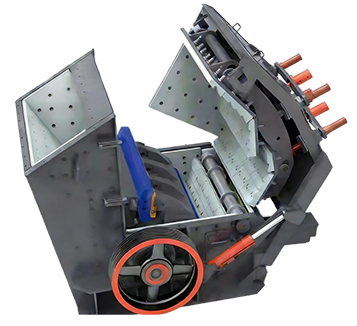

Internal Structure

Lower Lining Feed

Rotor

Counterattack Plate

Small Counterattack Plate

Rear Lining of the Lower Cavity

Hammer

Operating Principle

The hydraulic impact crusher uses a high-speed rotating rotor to drive the hammers and impact the materials, imparting kinetic energy and propelling them toward the impact plates for crushing. Multiple crushing processes are achieved through collisions between the impact plates and the materials, as well as between the materials themselves. The hydraulic system allows for adjusting the gap between the impact plates to control the output particle size and provides a quick restart as overload protection. This machine combines impact and layer crushing, producing high-quality finished products with excellent particle shape and high efficiency.

Technical Specifications

Modelo	Tamaño de Rotor (mm)	Boca de Alimentación (mm)	Tamaño Máximo de Alimentación (mm)	Capacidad (t/h)	Potencia (kW)	Dimensión (mm)
PFW1210II	Φ1150*960	1100*1030	400	90-160	90-110	Φ1150*1400
PFW1214II	Φ1000*1050	1100*1430	500	130-200	132-160	240023102550
PFW1315II	Φ1300*1500	1200*1530	600	180-320	160-200	270025702800
PFW1318II	Φ1300*1800	1200*1830	700	240-400	200-250	270028702800
PFW1415II	Φ1400*1500	1450*1530	800	260-450	200	300027003070
PFW1210III	Φ1150*960	570*990	250	70-140	90-110	255018702100
PFW1214III	Φ1150*1400	570*1430	250	90-170	132-160	255023102100
PFW1315III	Φ1300*1500	625*1530	300	180-270	160-200	296025702380
PFW1318III	Φ1300*1800	625*1830	300	220-300	200-250	296028702380
PFW1415III	Φ1400*1500	800*1530	350	280-350	200	312026502660
