Suitable materials are pebbles, limestone, granite, basalt, etc. The output size is adjustable and the crushing process is simple.
Technical Advantages
High utilization of impact energy
The rotor has a large mass and high speed, and the hammers are robust, allowing it to accelerate and throw materials forcefully against the impact plate, resulting in a high crushing rate.
Advantages of natural shaping

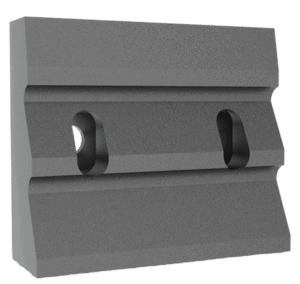

The particles produced by the repeated impacts between the high-speed impact and the counterattack plate are mostly cubic, with sharp edges and smooth surfaces.
Expert in crushing soft materials
Especially suitable for crushing materials of medium or lower hardness with low abrasiveness, such as limestone, gypsum, coal, concrete, and construction waste.
Easy to adjust
By flexibly adjusting the rotor speed, impact plate clearance, etc., the particle size of the product can be modified to meet different production needs.

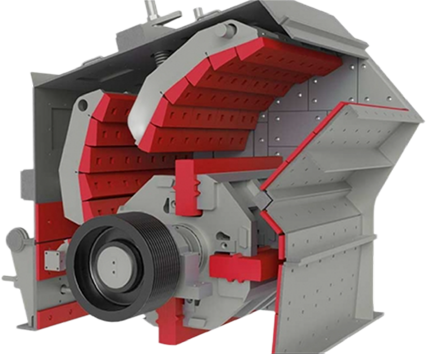

Internal Structure

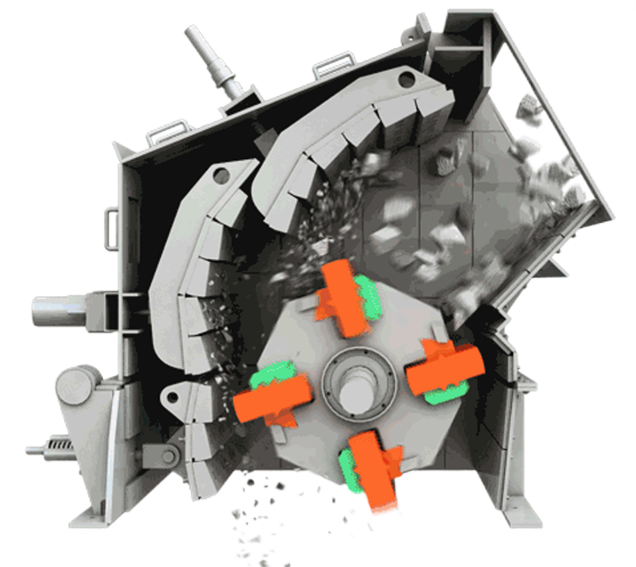

Working Principle
The material enters the high-speed rotating rotor, is accelerated by the hammers, and then thrown against the impact plate, achieving crushing through repeated impacts and collisions. The gap between the impact plate and the rotor is adjustable to control the output particle size. During the crushing process, the material breaks along its natural texture, resulting in better particle shape, making it ideal for fine crushing of medium-hard materials.
Technical Parameters
Modelo | Tamaño de Rotor (mm) | Boca de Alimentación (mm) | Tamaño Máximo de Alimentación (mm) | Capacidad (t/h) | Potencia (kW) | Dimensión (mm) |
PF1007 | Φ1000*700 | 400*730 | 300 | 30-70 | 37-45 | 2330*1660*2300 |
PF1010 | Φ1000*1050 | 400*1080 | 350 | 50-80 | 55-75 | 2440*2250*2630 |
PF1210 | Φ1050*1250 | 400*1080 | 350 | 70-120 | 110-135 | 2700*2340*2870 |
PF1214 | Φ1400*1250 | 400*1430 | 350 | 80-160 | 132-160 | 2700*2440*2900 |
PF1315 | Φ1300*1500 | 860*1520 | 350 | 160-260 | 180-260 | 2860*2440*2900 |
PF1320 | Φ1300*2000 | 993*2000 | 500 | 280-380 | 250 | 3220*3100*3120 |
PF1520 | Φ1500*2000 | 830*2040 | 700 | 380-550 | 315-400 | 3959*3564*3330 |
