MQ Ball Mill

Capacity: 0.04-400tph

Material: Gold/Silver/Copper/Lead/Zinc ore, etc.

Click Here

The ball mill is an efficient piece of equipment for grinding very hard materials into powder. It is mainly used in beneficiation equipment, ceramics, the chemical and cement industries, etc.

Plants in Latin America

3-5tph Ball Mill for Grinding Feldspar

6tph Ball Mill for Grinding Manganese Ore

2-3tph Ball Mill for Grinding Graphite Ore

Technical Advantages

Wide range of applications

It can grind materials of varying hardness, including metallic and non-metallic minerals, and can be used for both wet and dry grinding.

High continuous operating capacity

Capable of operating continuously in the long term (24 hours a day), making it the ideal choice for large-scale industrial production.

Low failure rate

The ball mill operates stably with a low failure rate, ensuring production capacity and helping customers quickly recoup their investment costs.

Easy operation

Simple structure, robust and durable key components, high degree of component standardization, easy operation and maintenance.

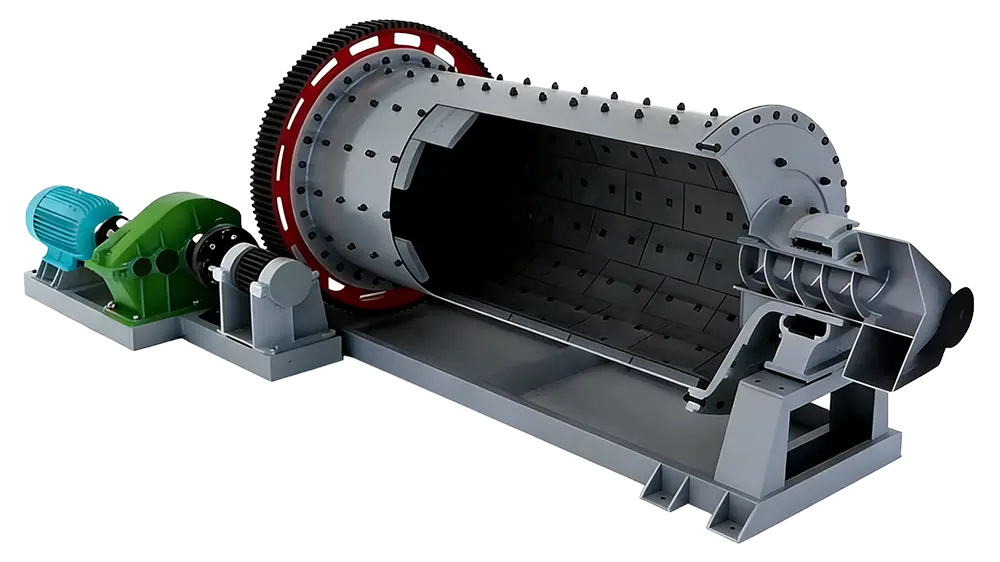

Internal Structure

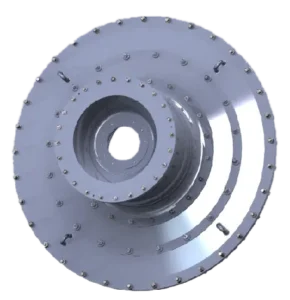

Food section

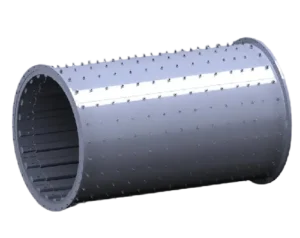

Cylinder

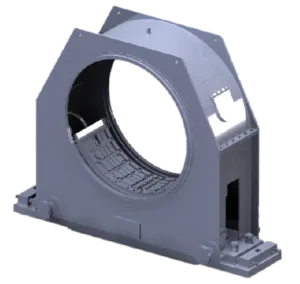

Bearing

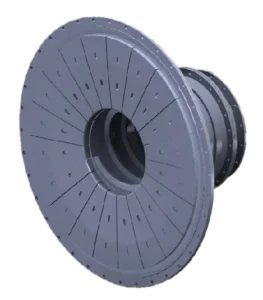

Exit Section

Cladding board

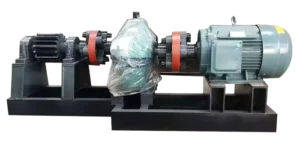

Gearbox + Motor

Operating Principle

Feeding

The material is fed continuously and uniformly into the ball mill through a feeding device (such as a screw feeder) from the hollow trunnion at one end. The centrifugal force generated by the rotation of the cylinder carries the material to the working zone, preparing it for grinding.

Grinding

The rotation of the cylinder drives the steel balls (or grinding media) inside. The steel balls, lifted to a certain height by centrifugal force, fall or slide, generating a strong impact, collision, and grinding effect on the material, causing its continuous decomposition and refining.

Discharge

The ground material, driven by the continuous feed, moves to the other end of the cylinder. The powder that has reached the required fineness is discharged through the screen or sieve into the hollow trunnion at the other end, thus completing the entire grinding process.

Ball Mill Models

φ900*1800	φ900*3000	φ1200*2400	φ1200*3000	φ1200*4500
φ1500*3000	φ1500*4500	φ1500*5700	φ1830*3000	φ1830*4500
φ1830*6400	φ1830*7000	φ2100*3000	φ2100*4500	φ2100*7000
φ2200*6500	φ2200*7000	φ2200*7500	φ2400*3000	φ2400*4500
φ2400*7000	φ2700*3600	φ2700*4000	φ2700*4500	φ2700*6000
φ3200*3600	φ3200*4500	φ3200*5400	φ3000*11000	φ3600*4000
