C Jaw Crusher

Capacity: 80-1000tph

Dual Wedge-Shaped Discharge Port / Integrated Motor Mounting Base

The European C jaw crusher is suitable for crushing various minerals and rocks with a compressive strength not exceeding 320 MPa.

Plants in Latin America

200tph Basalt Crushing Plant

200-250tph Basalt Crushing Plant

60tph Slate Crushing Plant

100-150tph Aggregate Production Plant

200tph River Stone Crushing Plant

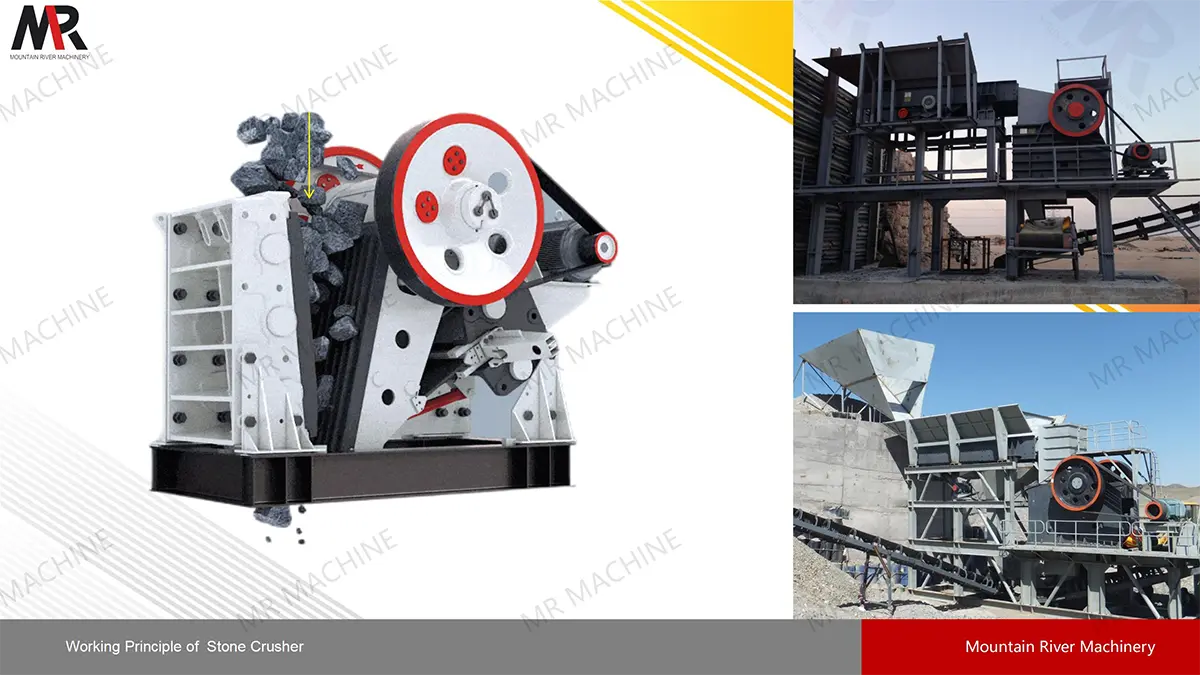

Technical Advantages

Non-welded structure

The main body of the machine adopts a weld-free frame structure, using high-strength steel plates and precision-machined pins to form a sturdy frame, which can prevent the equipment from losing durability when subjected to impacts.

Optimized crushing chamber

The optimized crushing chamber is adopted, the size of the feed port is well suited to the height of the crushing chamber, and the length-width ratio of the feed port has been strictly tested to avoid blockage as much as possible.

Special design

The design incorporates high centrifugal force and a steep tilting plate angle, resulting in a larger effective stroke at the bottom of the crushing chamber and ensuring high power.

Integrated motor

The integrated motor mount design saves space when installing the jaw crusher. Adjustable V-belt tension on the motor mount extends its lifespan and reduces operating costs.

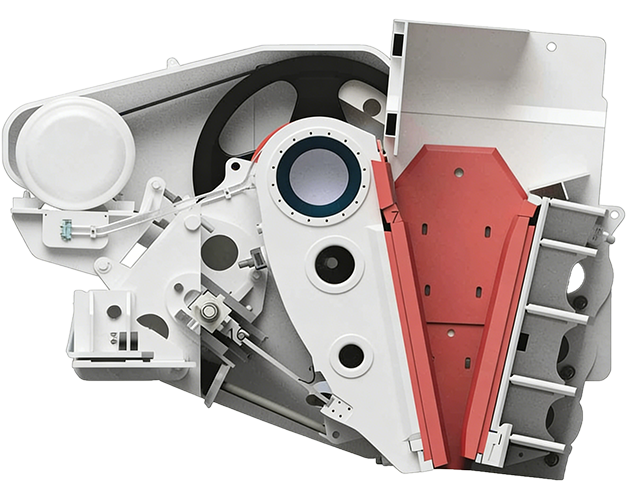

Internal Structure

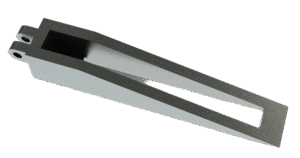

Adjust the Fixed Wedge

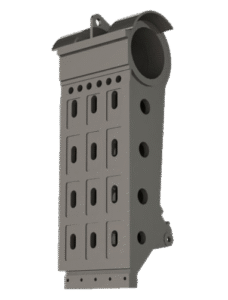

Mobile Jaw

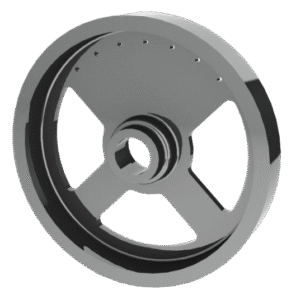

Steering wheel

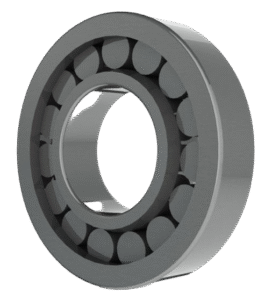

Bearing Housing

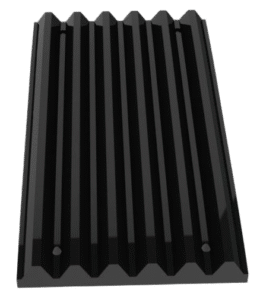

Jaw Plate

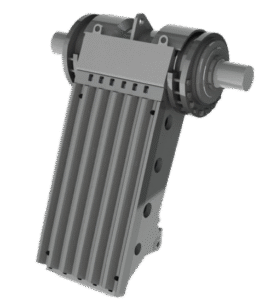

Movable Jaw Assembly

Operating Principle

Durante el funcionamiento de la trituradora de mandíbulas serie C, el motor eléctrico impulsa la rotación del eje excéntrico, This causes a periodic reciprocating motion of the moving jaw relative to the fixed jaw. Once the material enters the crushing chamber formed by the moving and fixed jaws, it is crushed through compression and grinding. Material that meets the particle size requirements is discharged through the lower discharge port, achieving continuous and efficient crushing. The unique design of the crushing chamber and its high compression ratio ensure both processing capacity and product particle size.

Technical Specifications

Modelo	Apertura de Alimentación (mm)	Max. Tamaño de Alimentación (mm)	Tamaño de Salida (mm)	Capacidad (t/h)	Potencia (kW)
C80	520*800	420	60-150	80-290	75
C100	760*1000	650	70-200	140-400	110
C106	700*1060	600	70-200	140-420	110
C110	850*1100	720	80-200	160-550	160
C120	870*1200	740	100-200	200-650	160
C125	950*1250	800	100-250	230-760	160
C145	1100*1450	920	125-275	320-950	200
C160	1200*1600	1020	150-300	410-1150	250
C200	1500*2000	1200	175-300	610-1510	400
CJ6310	630*1000	580	80-180	100-195	75
CJ8711	870*1100	720	85-220	130-360	110
CJ1113	1100*1300	940	120-260	260-580	160
CJ1216	1200*1600	1050	165-320	450-800	220
